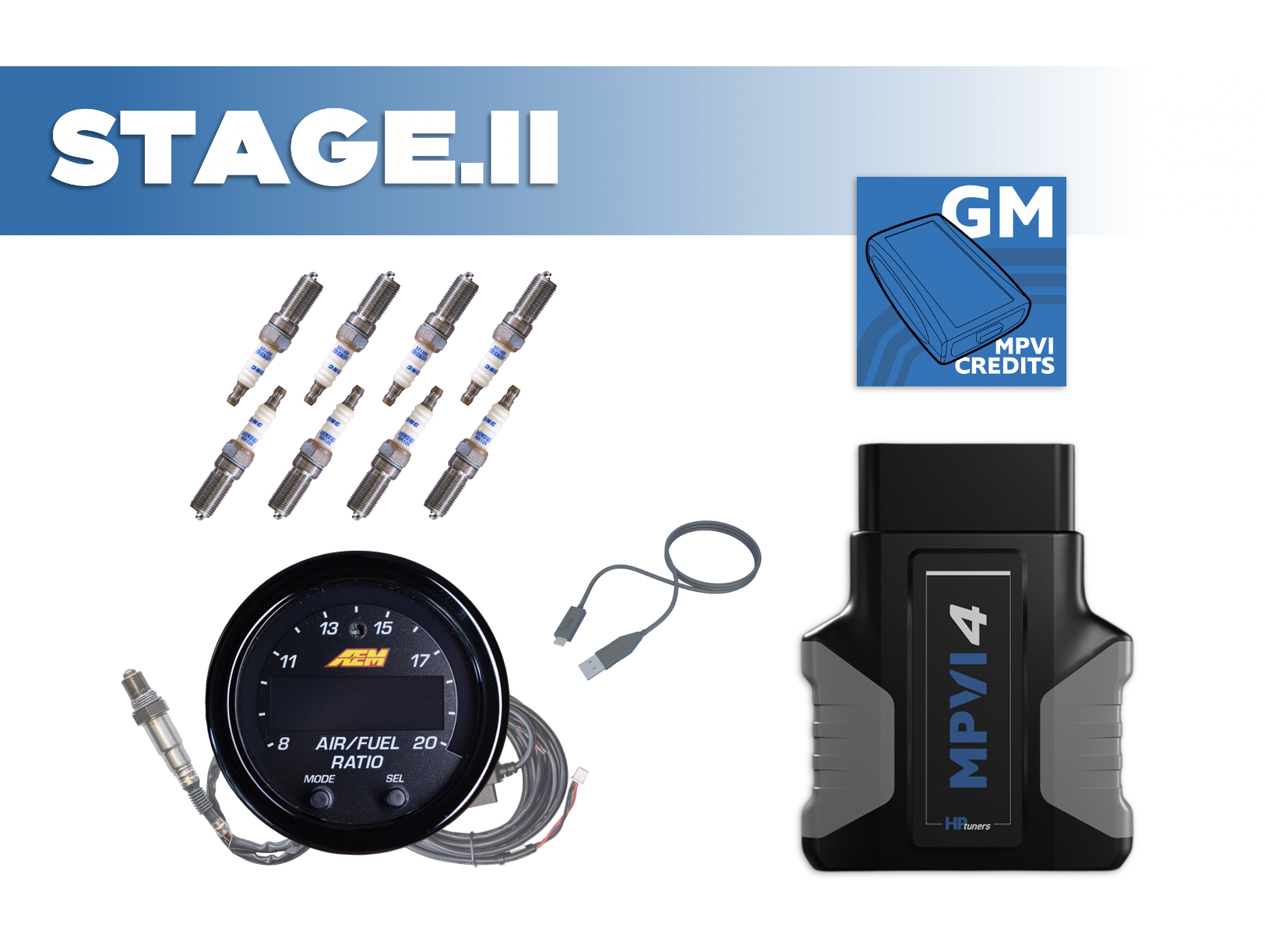

Griffin Motorsports - Stage.II Remote Tuning Package featuring the HP Tuners MPVI4 Interface + AEM's X-Series OBDII Wideband (PN 30-0334) + Brisk Racing Silver Spark Plugs.
By now it should be clear just how incredibly capable our modern engines are from factory. Despite all of their advancement in Di fueling, more forged components, and factory supercharging, the OEM’s have still left so much on the table for savvy minds at HP tuners to help you extract. No matter the platform, it never seems to take long before the Griffin Motorsports KONG Ported Blower Package, E85 Sensor Kit, Upgraded XDI Fuel Injectors, Head & Cam Packages and cooling mods are all in your shopping cart, just waiting to pull the trigger. And when that branded box of sexy parts arrives, you are quickly reminded that the only way you can extract the power you want, and provide the durability you need, is with master level calibration.
Unfortunately, the amount of master tuners for the LS/LT engine platform are few and far between which means if you are like me, you have been and or will continue to utilize a remote tuner in order to get the most from your build, and keep things safe. No better way to kick off that tuning process than with one of our Griffin Motorsports staged remote tuning hardware packages.

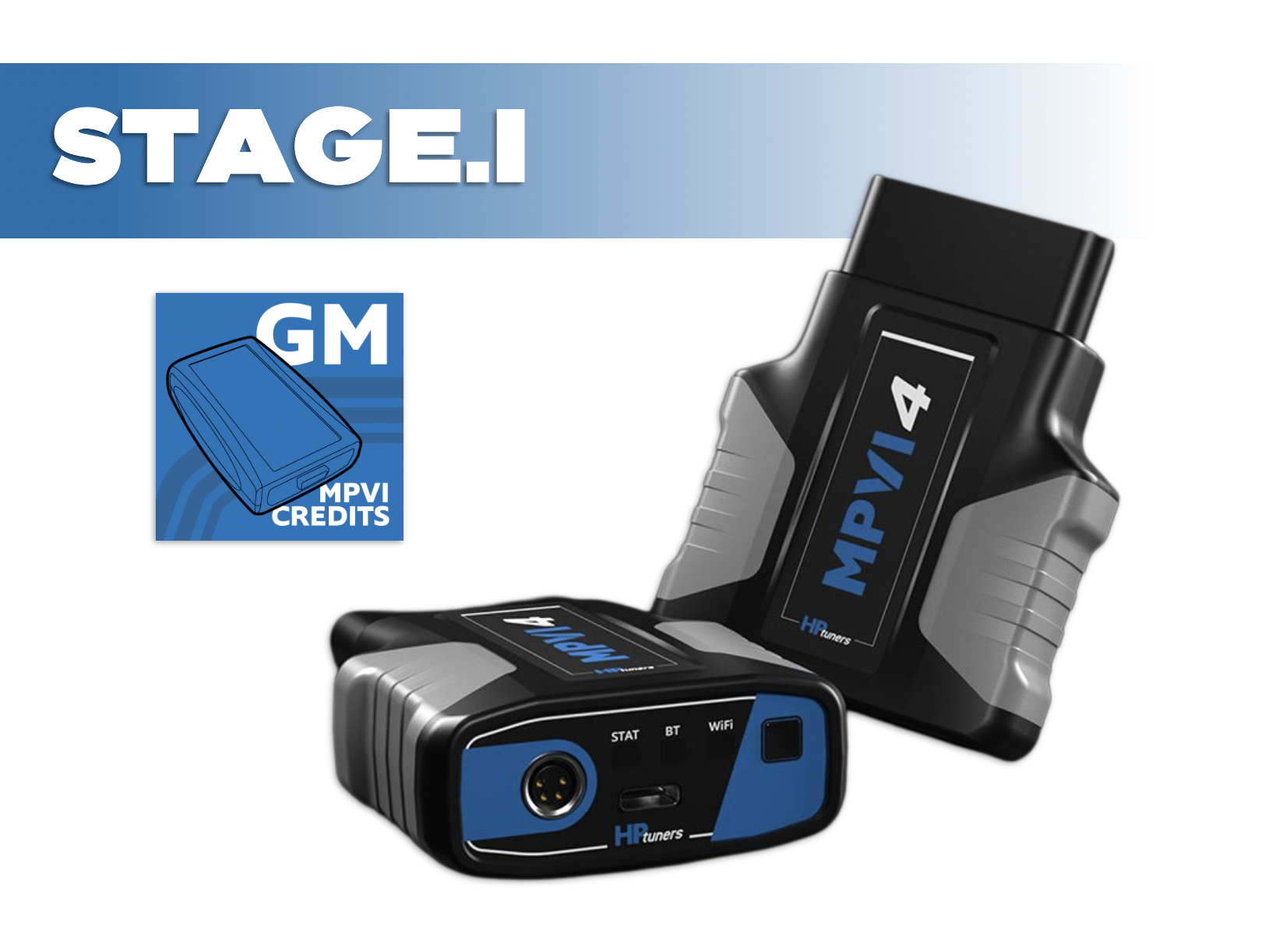

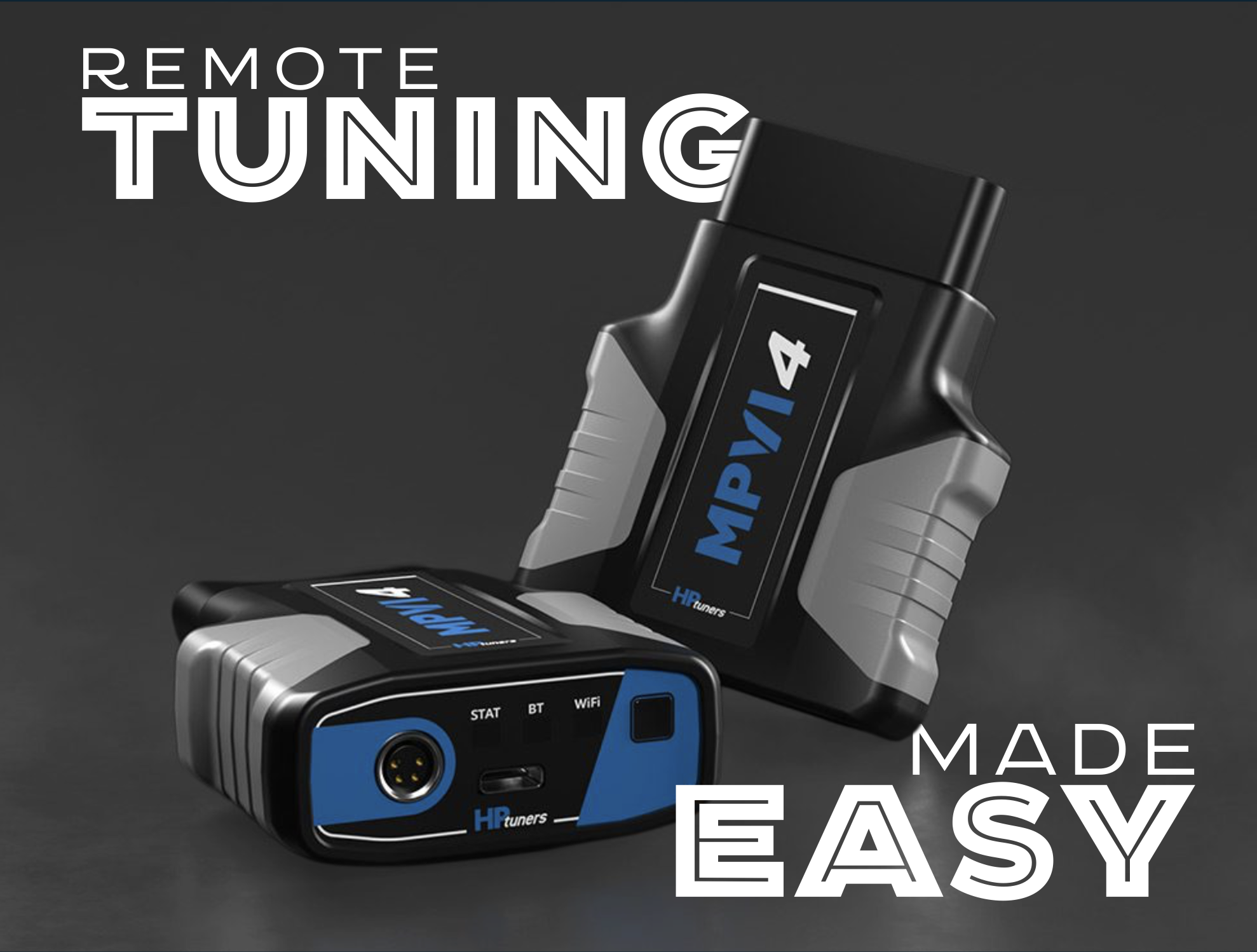

HP Tuners MPIV4.
The HP Tuners MPVI4 is the industry-standard vehicle interface that unlocks full access to your ECU and TCM, allowing you to flash custom calibrations, log high-resolution data, and safely optimize your LS/LT/Global B platform—whether you’re tuning the car yourself or working with a professional remote tuner like Justin White Tuned.
The MPVI4 is a high-speed vehicle interface (VCI) that connects your car to HP Tuners VCM Suite, giving you:
Full ECU and TCM read/write capability
High-speed data logging with expanded channel access
Support for custom tuning files created by you or your tuner
Compatibility with gasoline, E85, flex-fuel, boosted, and NA LT setups
If you’re modifying your engine, this isn’t optional—it’s foundational.
Designed for Remote Tuning:
If you’re working with a professional tuner, MPVI4 is the required communication bridge:
Read and flash tune files your tuner sends you
Log high-resolution data exactly how they request
Email logs and revisions back and forth with confidence
Make changes on your schedule—no shop visits required
Allows you to work with ANY TUNER in the world (no more restrictions)
Allows you to make small tune changes on the fly for those with experience
Why MPVI4 Is a Major Upgrade Over Previous Generations:
Compared to earlier MPVI interfaces, the MPVI4 delivers:

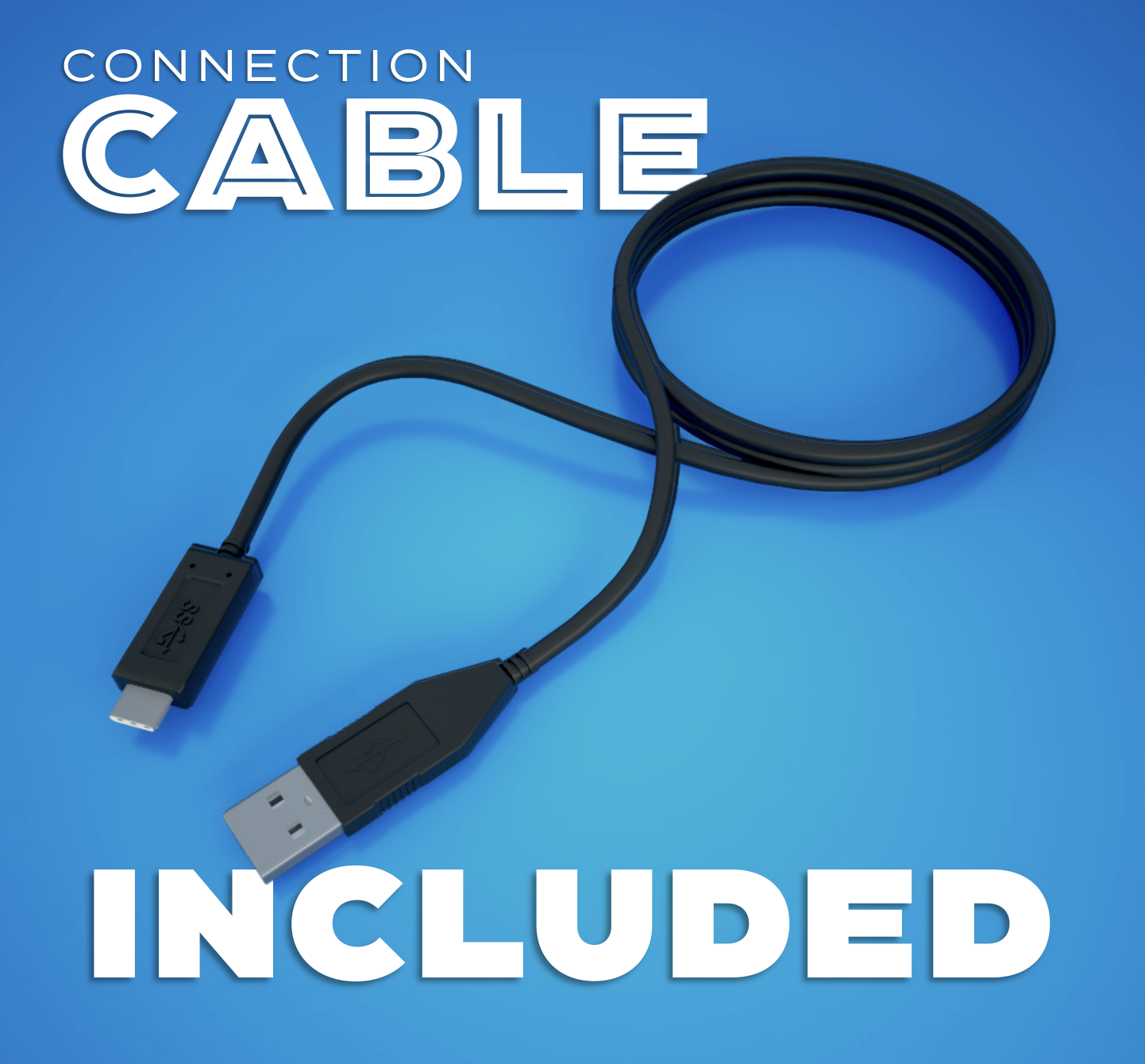

Improved USB-C connectivity
32X More RAM Memory (32 vs 1024)
Faster processing and improved stability
WiFi Enabled with speeds up to 150mbps
Utilizes the improvements on Bluetooth 5.2
Support for the latest GM operating systems
Expanded logging bandwidth for modern ECUs
Multi-colored status lights for better visual communication
3X More processing power (single core 500mHz vs. dual core 1.7GHz)
More efficient handling of complex LT torque models and flex-fuel data
When you’re logging ethanol content, fuel pressure, airflow models, and torque intervention all at once, speed and reliability matter. This level of access is why HP Tuners remains the gold standard for GM performance tuning.
How do HP Tuners Credits actually work?
HP Tuners uses a credit-based licensing system that allows you to unlock (license) specific vehicle control modules before making calibration changes. Credits are purchased digitally and stored in your HP Tuners account. When you connect your MPVI interface to a vehicle and license it, the required number of credits is deducted and permanently tied to that vehicle’s modules (ECM, TCM, etc.). Once licensed, you can read, modify, and flash that vehicle as many times as you want—there are no recurring fees, subscriptions, or limits on reflashes for that vehicle. Credits are vehicle-specific, not tune-specific, meaning future modifications don’t require additional credits unless new modules are added.
Key Benefits of the HP Tuners Credit System
One-Time Cost per Vehicle – License once, tune forever; no annual fees or pay-per-flash models
Permanent Vehicle Licensing – Credits are locked to the VIN/modules, not individual tunes
Flexible & Scalable – Ideal for DIY enthusiasts, shops, and multi-vehicle owners
Mod-Friendly – Add cams, blowers, injectors, E85, or turbos without buying new licenses
Remote-Tuner Ready – Works seamlessly with professional remote tuners
Transparent Pricing – You know exactly what you’re paying for up front
Click HERE for an HP Tuners VIDEO explanation.
Click HERE for a tour of the VCM Scanner Tool.
Click HERE for the entire HP Tuners Introductory Youtube Playlist!

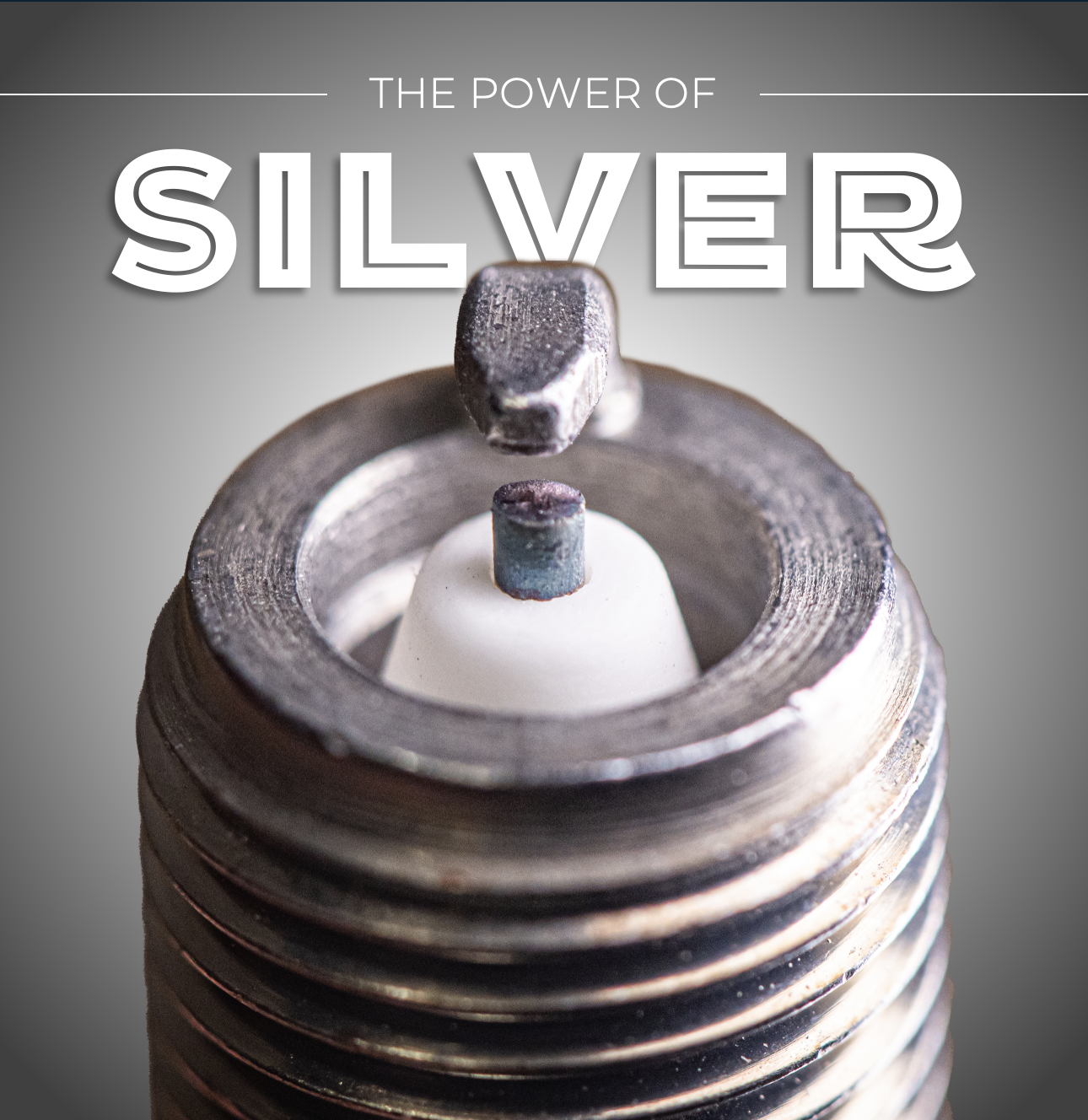

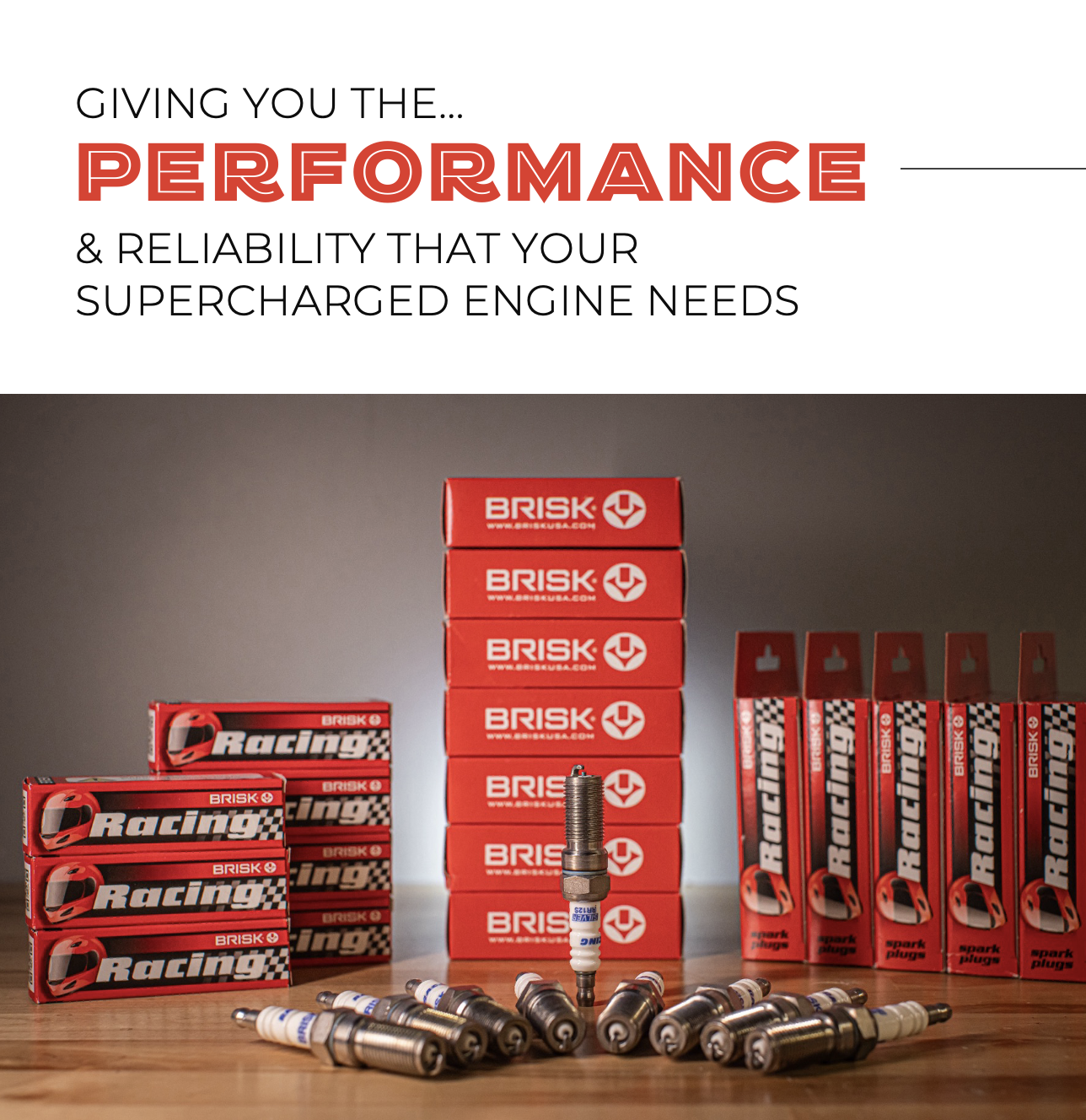

Brisk Racing Silver Spark Plugs
Modified LT4’s demand ignition components that can withstand extreme conditions and deliver maximum efficiency, which is why Brisk Racing Silver Spark Plugs are an ideal choice for our supercharged cars. These plugs feature a silver center electrode, known for its superior thermal and electrical conductivity compared to traditional materials like copper or platinum. This results in a stronger, more consistent spark, improved throttle response, and more efficient combustion—all critical for modified, boosted and high-revving engines. Additionally, the silver construction resists fouling and maintains performance even under high-stress driving conditions, making them especially suited for the LT4. By using Brisk Racing Silver Spark Plugs, drivers can ensure their engines operate at peak performance with enhanced power, fuel efficiency, and reliability.
Running a colder spark plug helps improve combustion stability and reduce the risk of pre-ignition or detonation under increased cylinder pressures and elevated combustion temperatures. Colder plugs have a shorter insulator nose and dissipate heat more quickly to the cylinder head, keeping the firing tip cooler. This is crucial on LT4 applications where forced induction significantly raises the thermal load on the engine. By controlling plug tip temperatures, colder plugs help maintain reliable spark performance, prevent misfires, and support consistent power delivery—especially during sustained high-boost conditions.
From the Brisk website;
Brisk Silver Racing Spark Plugs have a smaller diameter silver core and conventional open spark hook type earth electrode give an outstanding performance in igniting high octane fuel mixture associated with alternative fuels like CNG, LPG, Propane, E85 blend, Alcohol, LNG, Race Fuels and Nitro.
Silver metal is the single best material for a spark plugs core electrode, as it can dissipate heat fast, resulting in overall lower spark plug temperature and a more powerful spark. Silver is the best conductor of any metal! It conducts 560% more electricity & 481% more heat than Platinum, and 276% more electricity & 177% more heat than Iridium.
The stronger the spark the faster and better the flame front and flame speed giving smother higher RPM range in engines.
The BRISK Silver Racing spark plug works well with most aftermarket and OEM ignition systems form simple coil and distributor through electronic ignition and powerful direct ignition systems found on modern port and direct injection performance engines.
Features
Fires properly even if fouling occurs, common standard plugs failure.
Silver centre electrode, best thermal (heat) & electrical conductor.
Lower voltage requirement for safe operation.
Reduces wear on coil, leads and other ignition parts.
1.5 mm Silver Wire Centre Electrode
Applications
Methanol, ethanol, CNG, LPG, Propane, E85 blend, Alcohol, LNG, Race Fuels, Nitro, Nitrous.
Old vehicles with weaker ignition systems and/or excessive oil consumption.
High RPM race engines with short time for ignition coil saturation.
Naturally aspirated or forced induction applications
Standard and high compression engines
High octane or hard ignition fuels.
Service Life
15-18k miles
50 hours racing
Parameters:
ThreadDiameter - 14mm
Thread Reach - 25mm-1"
Hexagon - 16mm-5/8"
Seat Type - Tapered
Design - Silver Racing
Resistor - Yes
Projected - No
Fitment: 2017+ LT Engines

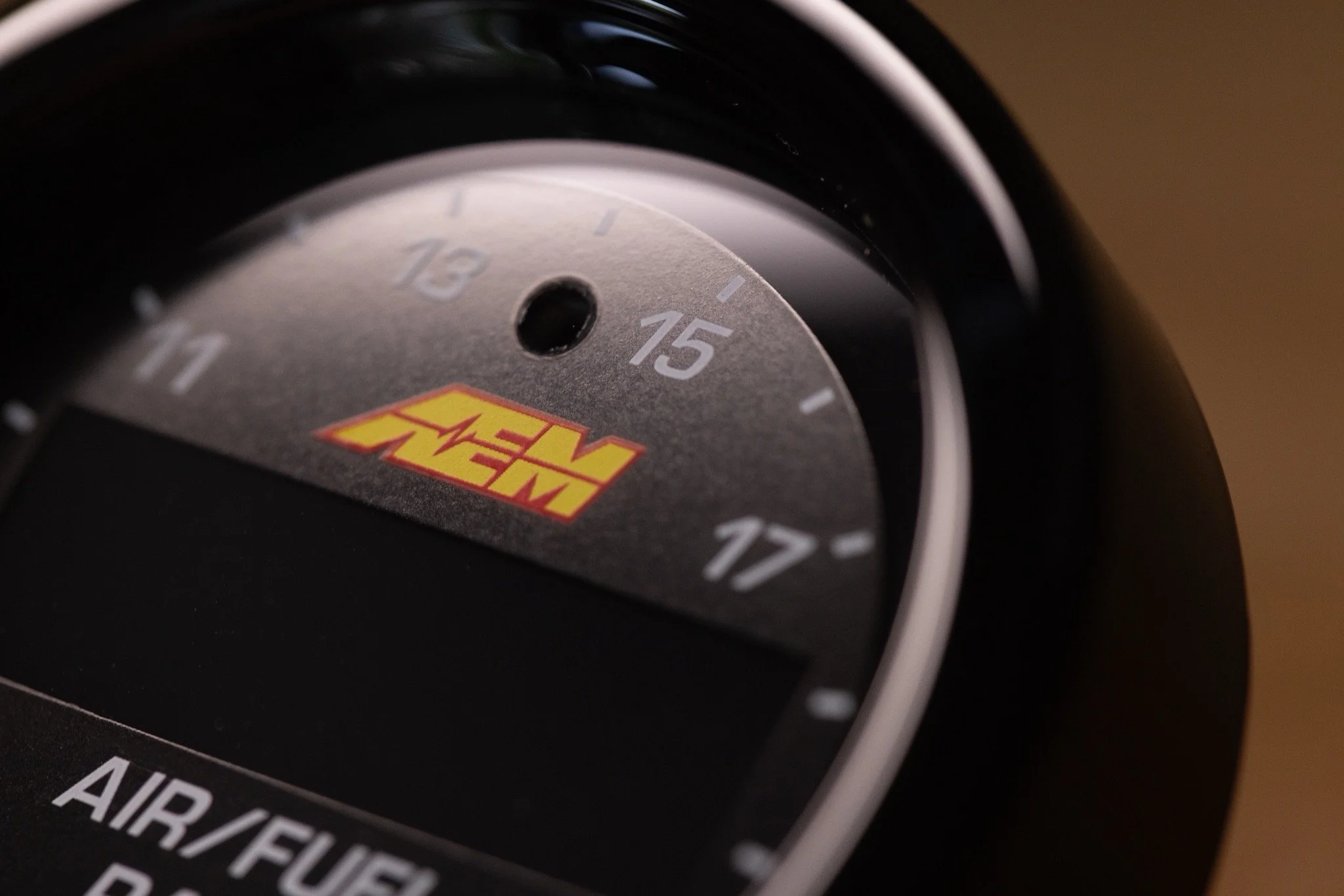

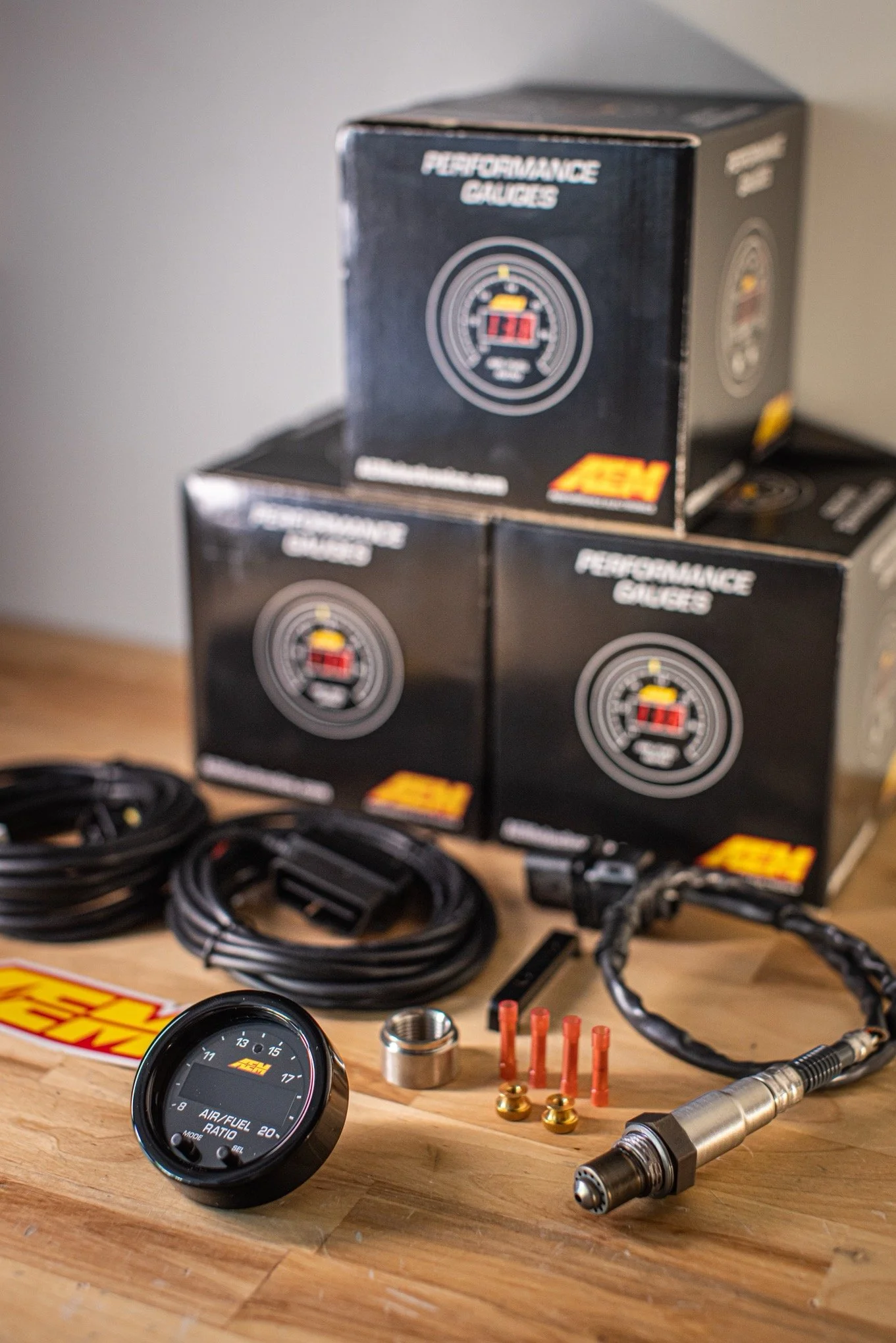

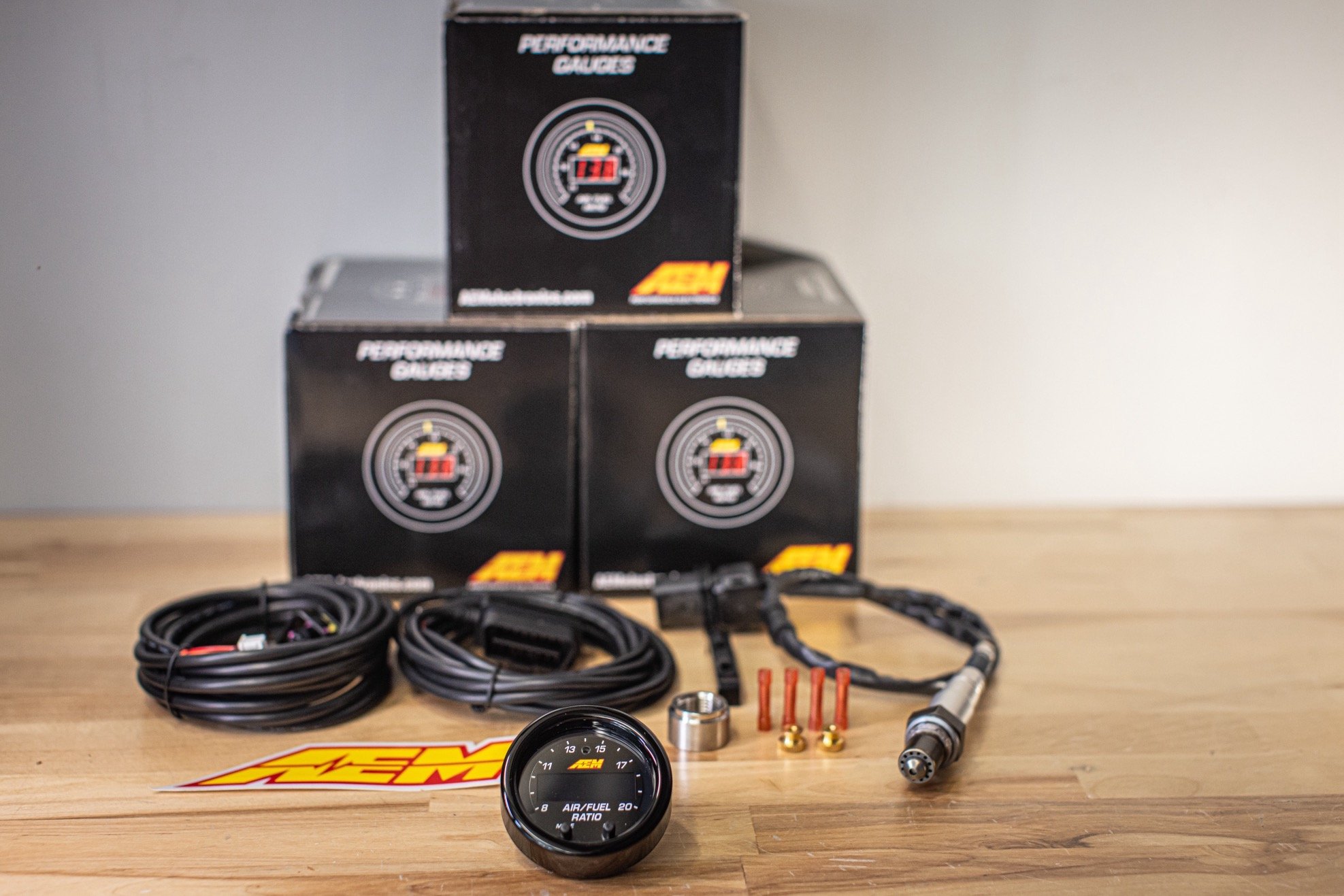

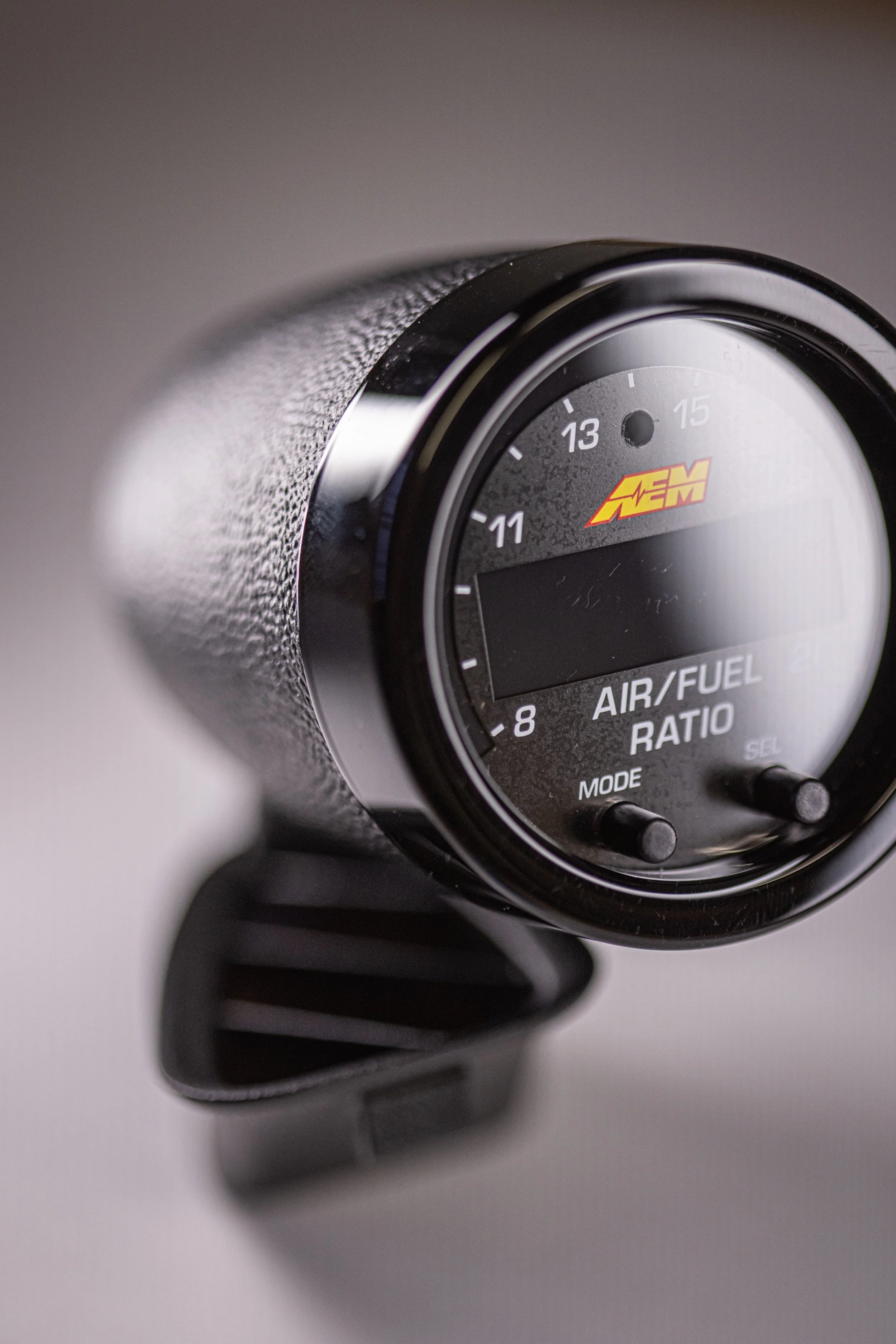

AEM's X-Series OBDII Wideband UEGO AFR Sensor Controller Gauge (PN 30-0334)
Exactly what your remote tuner will need in order to dial in your air fuel ration “ARF” using HP tuners through the factory CAN-bus stream that is output by the factory ECU, which delivers the most accurate, safe and powerful tune. The 30-0334 X-Series OBDII Wideband Gauge is verified to work with HPTuners, with more applications being validated. The X-Series Wideband AFR OBDII Gauge includes an OBDII connector and Bosch 4.9LSU sensor that can be free-air calibrated or used with the factory resistor calibration. Additional wiring for a 0-5v or RS232 Serial output can be added by the user for outputting to a data logger. This OBDII pass-through capability replaces the traditional AEMnet stream available in the 30-0300 X-Series Wideband AFR Gauge Controller.
The AEM X-Series is widely known for being the Fastest Wideband’s on the market having been previously tested against 17 other wideband systems. The UEGO air/fuel high speed controllers ensure no loss of signal fidelity and full transient response, making it able to identify the slightest fluctuations in AFR and output them in full value.
AEM KEY FEATURES
X-Series Wideband UEGO AFR Controllers Gauge were fastest responding wideband air/fuel ratio controllers in an independent test vs. 17 competitors wideband AFR controllers
Patented X-Digital wideband technology (Patent 9,575,030)
Includes Bosch 4.9LSU wideband UEGO sensor
Factory calibrated resistor does not require free-air calibration, but technology allows for free-air calibration as sensor ages if user desires
Compatible with vehicle/system voltages up to 16V
0-5V & RS232 output for data logging and feedback control, AEMnet (CANbus) for data logging and daisy-chaining multiple controllers up to 16 cylinders
Can display AFR values in hundredths of %
52mm gauge diameter and slim 0.825" gauge depth
Gauge cup depth only .200" deep
Auto dimming feature
User configurable display via buttons on the gauge face for changing AFR values, Lambda and O2%, and 3- or 4-digit display
Black bezel and black dual faced faceplate included (gauge only, silver bezel/white gauge option sold separately, PN 30-0300-ACC)
Whats in the box;
(1) HP Tuners MPVI4 Interface
(8) RR12S Brisk Racing Silver Spark Plugs
Access to HP Tuners VCM Suite (Editor + Scanner)
(1) AEM 03-0334 Wideband + OBD.II Pass-through Connector
HP Tuners Credits (see options within the pull downs) Follow THIS link so determine how many you need. Not sure? be sure to ask your tuner, or email us at info@griffin-motorsports.com
Vehicle Compatibility (Common Applications)
