ARP Gen V LT Engine Rocker Arm Stud Kit

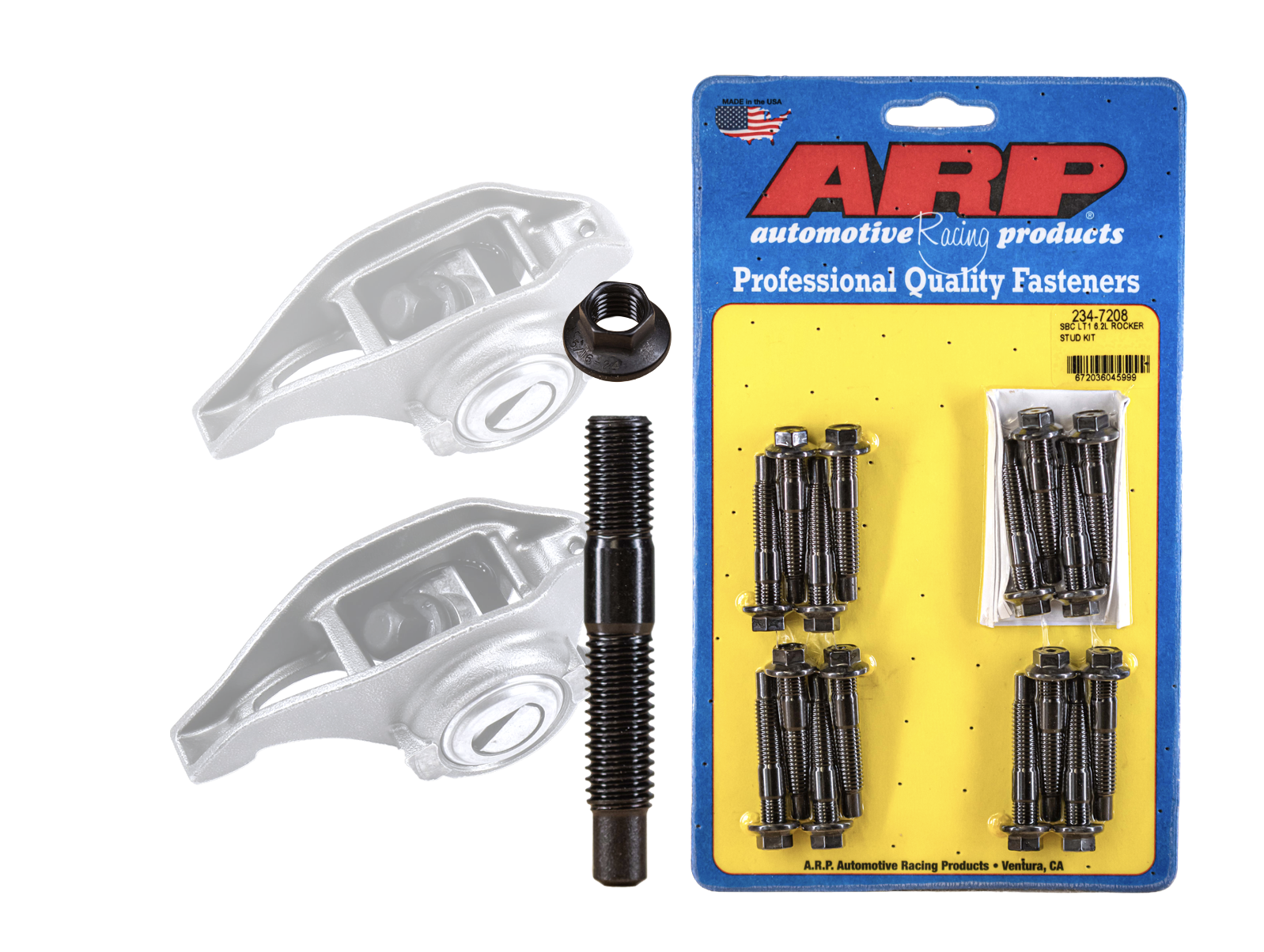

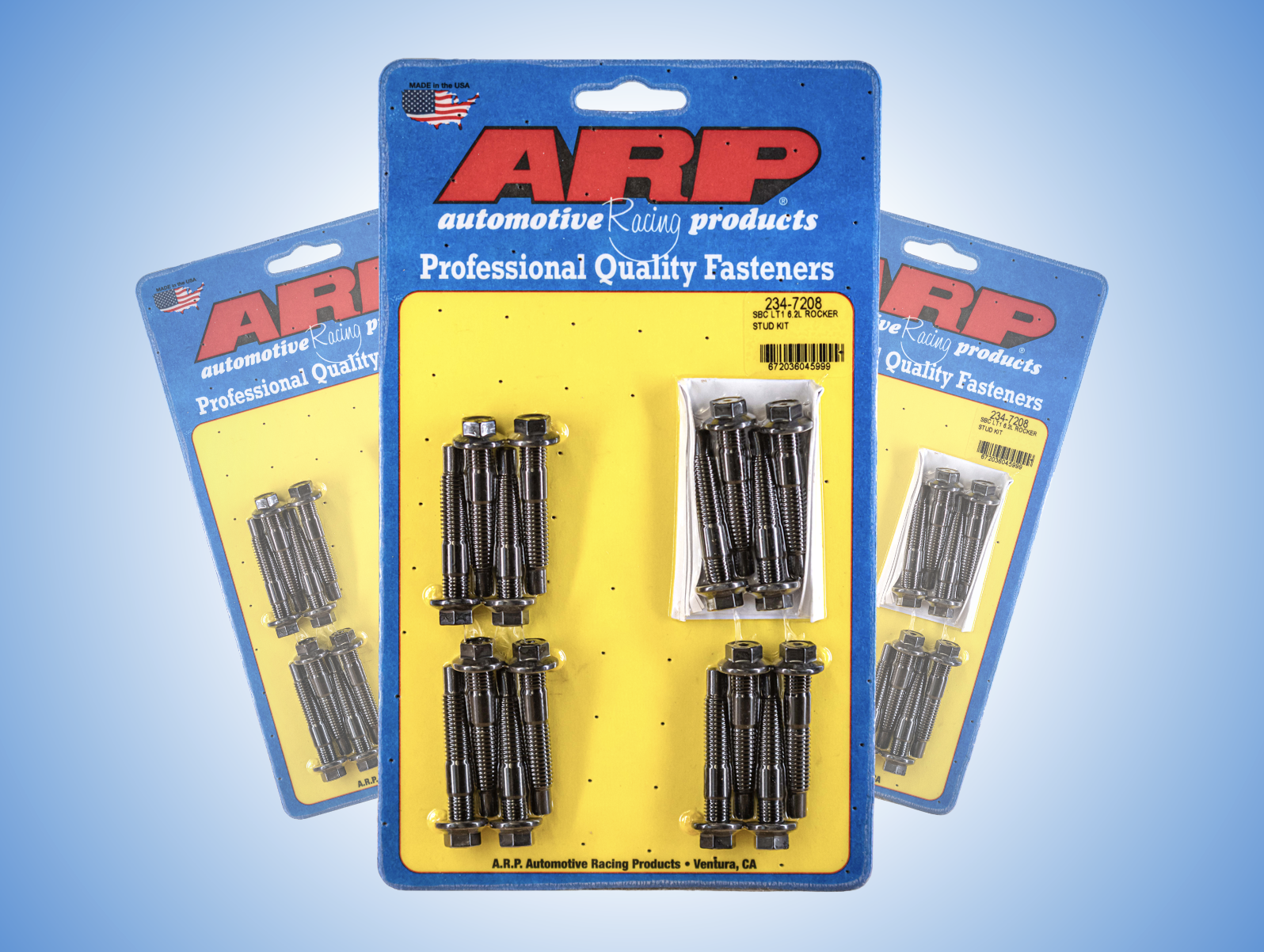

ARP Rocker Arm Stud Kit for Gen. V LT1 & LT4 Engines #234-7208

Eliminate Valvetrain Flex. Increase Reliability.

When you're pushing your Gen. V LT engine beyond factory power levels, the valve-train becomes one of the most critical systems in the entire engine. Whether you're installing a performance camshaft, upgrading valve springs, or building a high-RPM naturally aspirated or boosted combination, the factory rocker mounting hardware can become a weak point.

The ARP 234-7208 Rocker Arm Stud Kit is designed specifically for Gen V LT1 and LT4 engines, providing significantly greater strength, improved clamping force, and more consistent rocker geometry compared to factory hardware. Manufactured from premium 8740 chromoly steel and heat-treated to approximately 200,000 PSI tensile strength, these studs are built to withstand the extreme loads generated by aggressive camshaft profiles, increased valve spring pressures, and high-RPM operation.

For performance enthusiasts, racers, and engine builders who refuse to compromise reliability, ARP hardware has become the industry standard.

Why Upgrade to ARP Rocker Studs?

Increased Strength

Factory hardware was designed around factory spring pressures and RPM limits. Once aftermarket cams and dual valve springs enter the equation, valvetrain loads increase dramatically. ARP's 8740 chromoly construction offers substantially greater strength and fatigue resistance than OEM hardware.

Improved Valvetrain Stability

ARP manufactures their rocker studs to extremely tight tolerances, helping ensure more consistent rocker geometry and reducing unwanted movement under load. This contributes to improved valvetrain stability and long-term durability.

Designed for High Spring Pressure Applications

Whether you're running a street cam, road race setup, drag package, or high-boost LT4 combination, these studs are engineered to handle the increased spring pressures commonly found in performance Gen V builds.

Proven ARP Quality

ARP hardware is trusted by professional engine builders, championship race teams, and high-horsepower enthusiasts worldwide. When reliability matters, ARP is often the first choice.

Technical Specifications

• ARP Part Number: 234-7208

• Material: Premium 8740 Chromoly Steel

• Finish: Black Oxide

• Tensile Strength: Approximately 200,000 PSI

• Thread Size: 5/16"-24

• Base Thread: M8 x 1.25

• Effective Stud Length: 1.000"

Vehicle Fitment

• 2016-2024 Chevrolet Camaro SS

• 2017-2024 Chevrolet Camaro ZL1

• 2014-2024 Chevrolet Silverado / Sierra 6.2L

• 2014-2019 Corvette Stingray

• 2015-2019 Corvette Z06

• Other Gen V LT1 and LT4 applications utilizing compatible rocker arm setups.

The GMS Recommendation

Whenever we spec a camshaft and valve spring package on a Gen. V LT engine, we look closely at every component that contributes to valve-train reliability. Upgrading to ARP rocker studs is inexpensive insurance compared to the cost of repairing a valvetrain failure.

If you're already investing in a camshaft, springs, pushrods, and tuning, this is one of those upgrades that simply makes sense while everything is apart.

Go Faster. Stay Cooler. Reliably.
