6th Gen. Fuel Filter + Connection Kit

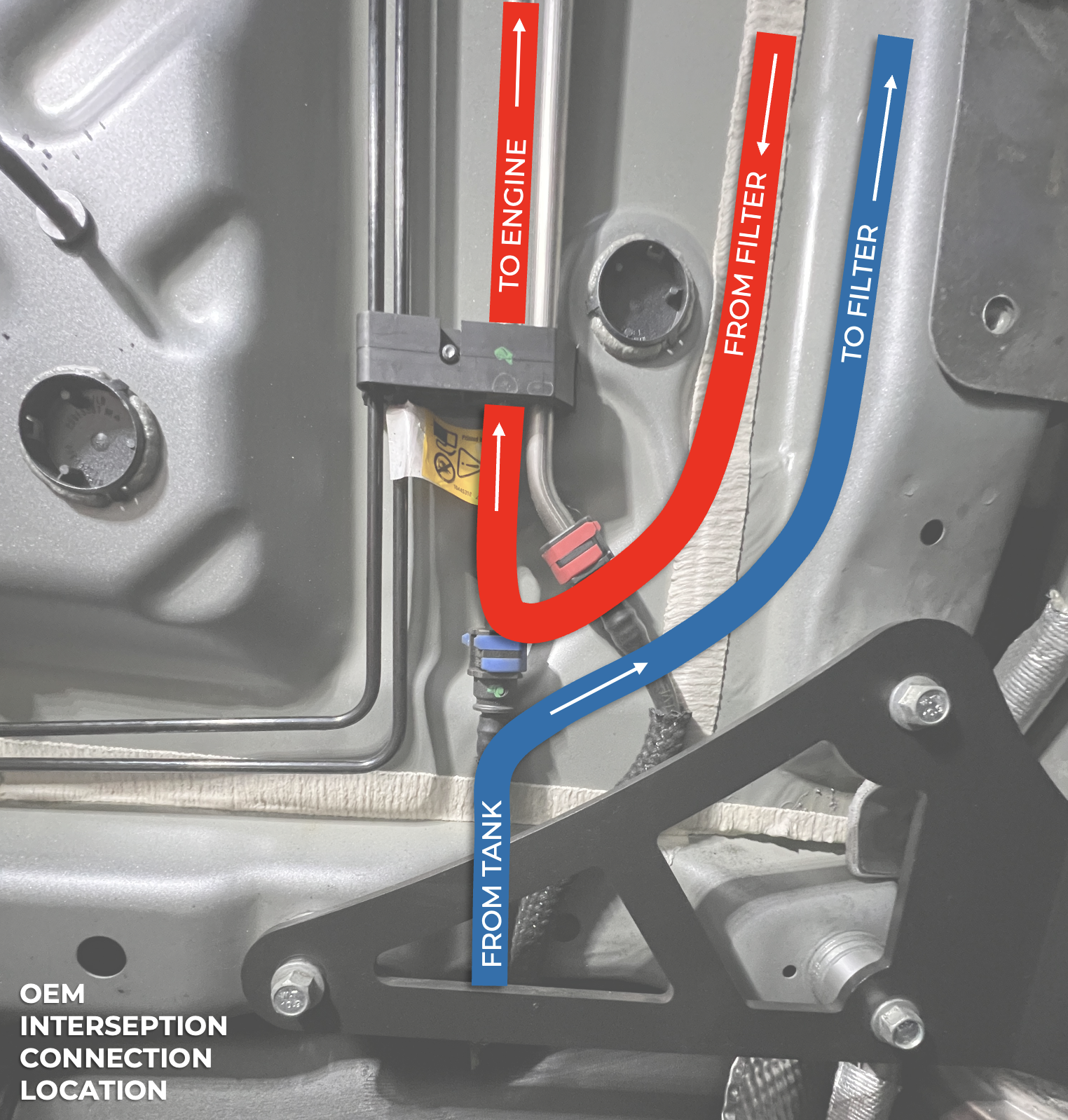

By popular demand, Griffin Motorsports is now offering a DIY Fuel Line connection kit bundle to help make things easier when connecting to the OEM fuel system lines. This is a MUST HAVE for those who are running upgraded Di Injectors, and want to protect your investment from harmful contaminents, and don’t want to clutter up the engine bay. Which was exactly the case that motivated us to create the custom bracket that would support the serviceable Racetronix fuel filter we wanted to use.

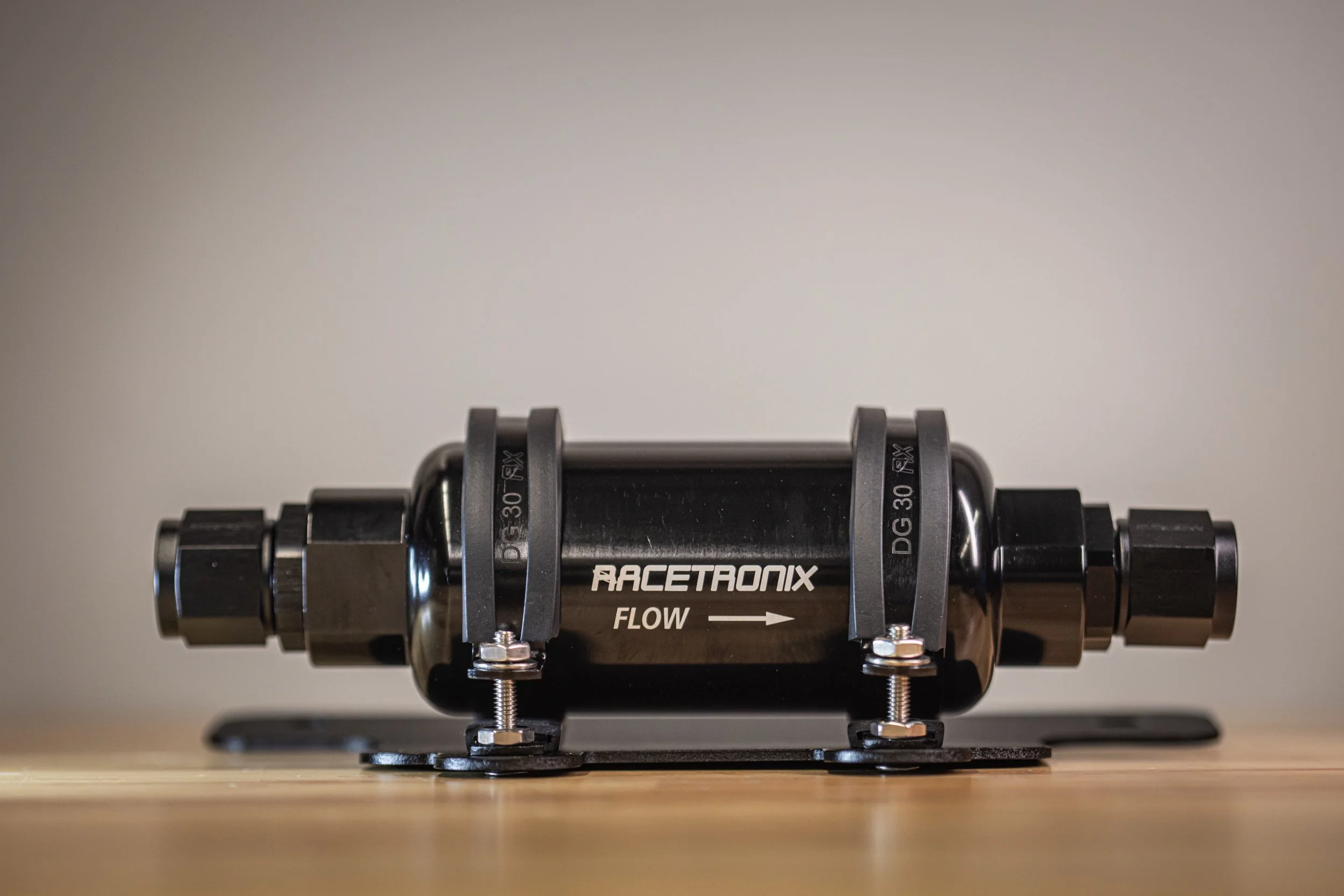

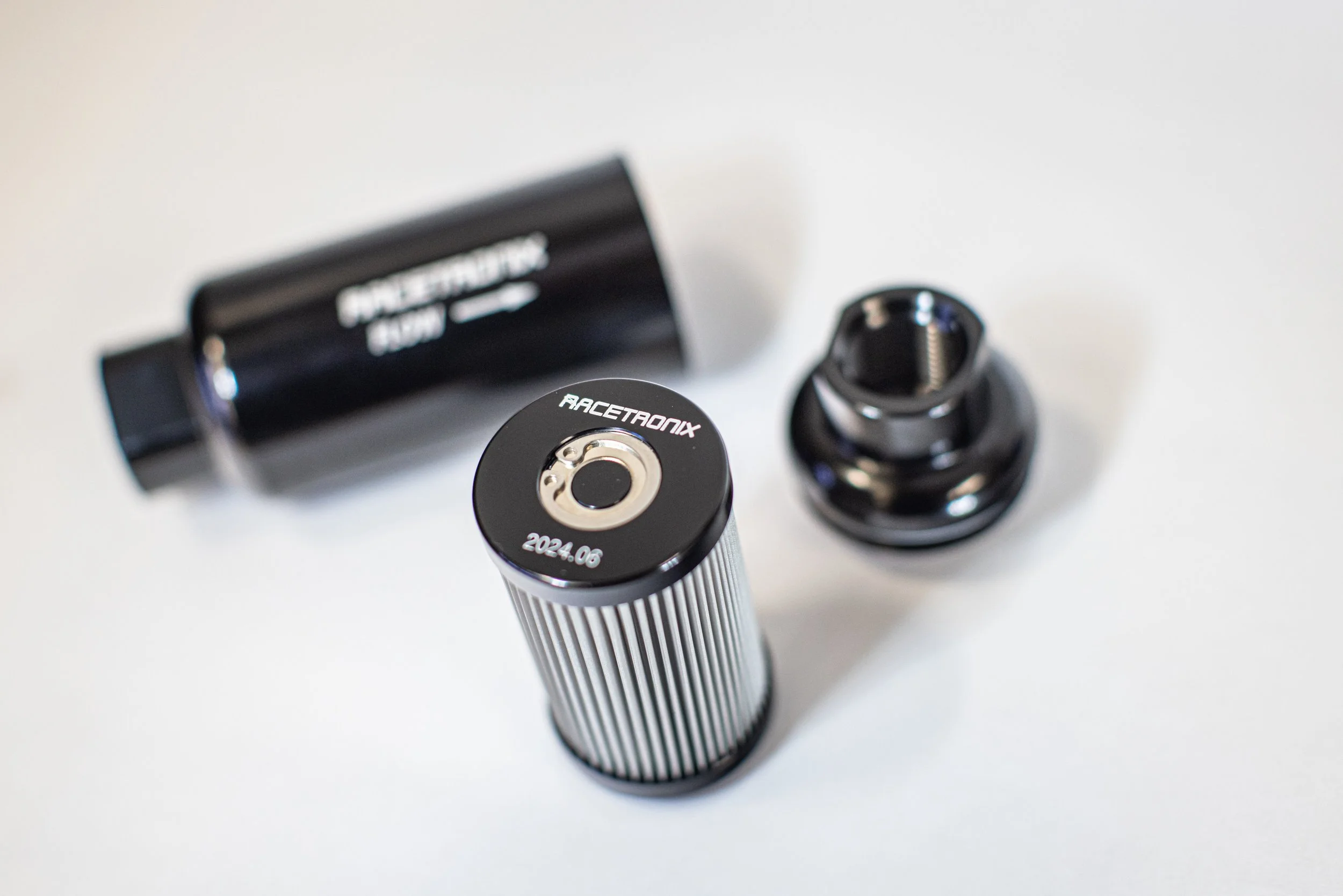

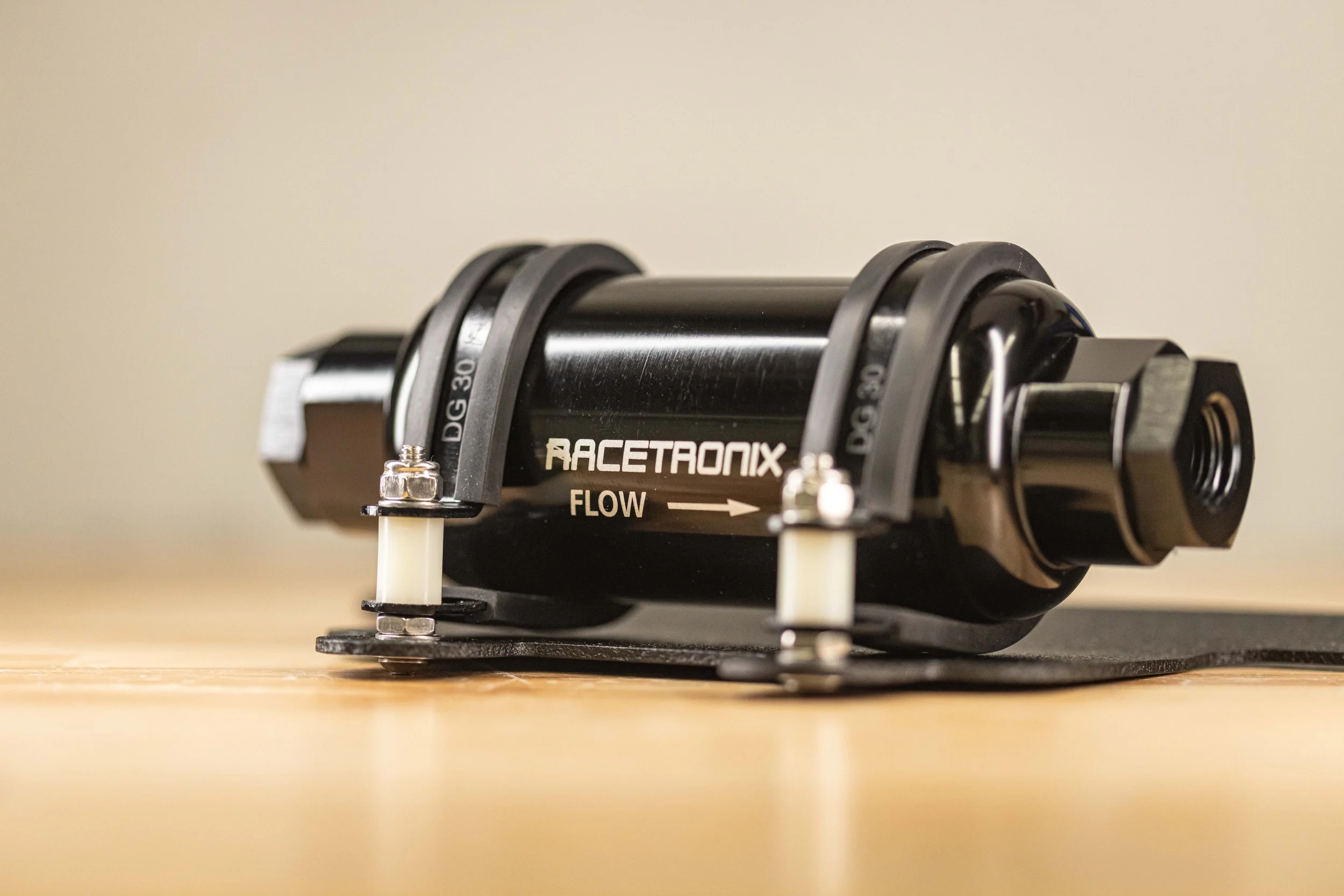

We chose this specific Racetronix filter housing for a few distinct reasons. 1: At only 5.5” long and approximately. 2” in diameter and equipped with -10 ORB high flow directional inlets and outlets this this filter body works double duty by being super compact yet high-flowing, which allows you the flexibility to use a wide range of fuel lines from -6 to -10 depending on your fuel volume needs. 2: Was the intelligent two piece case design allowing you access to inspect / clear or replacement the 10 Micron 304SS Filter Element with magnetic base.

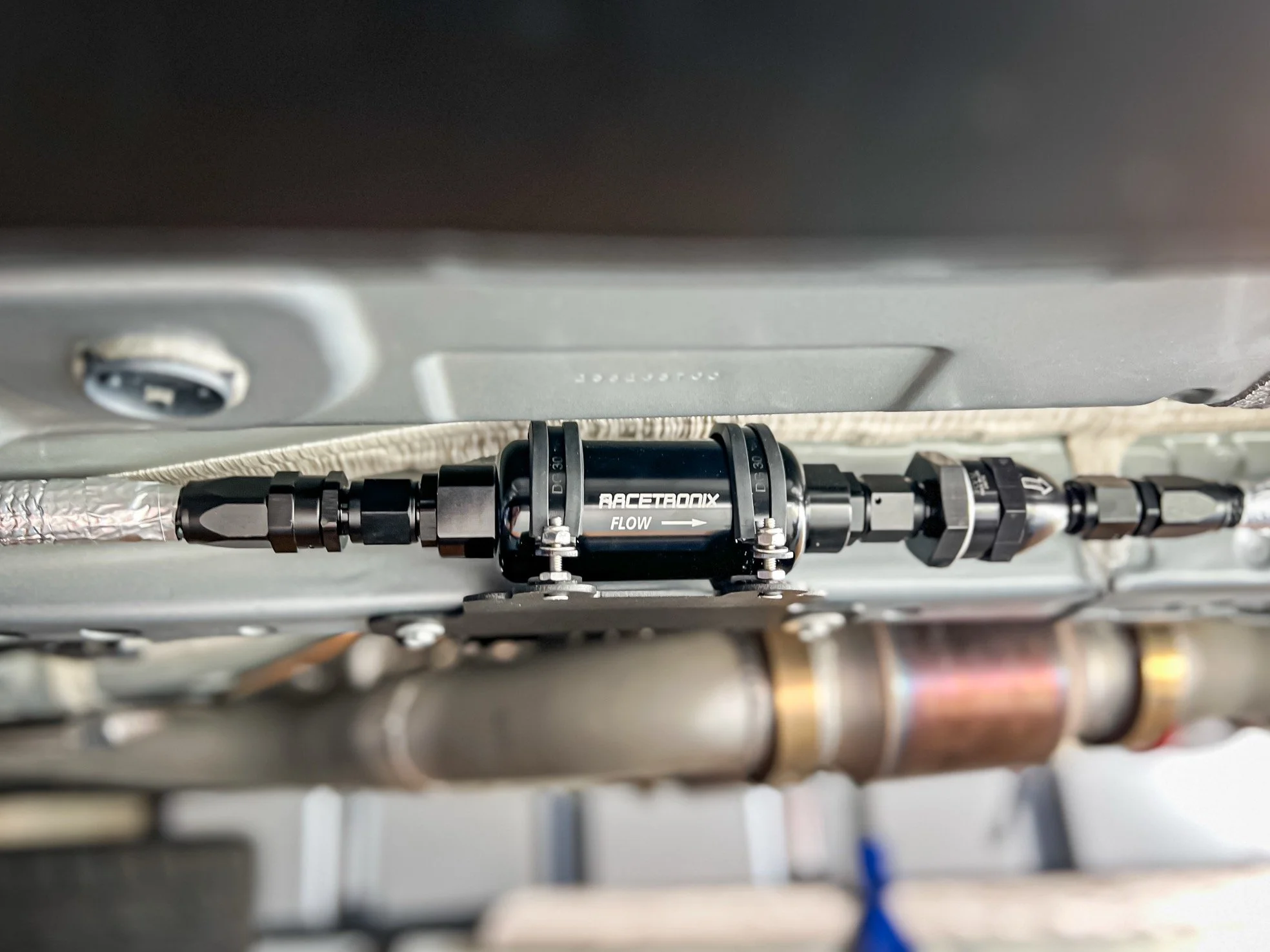

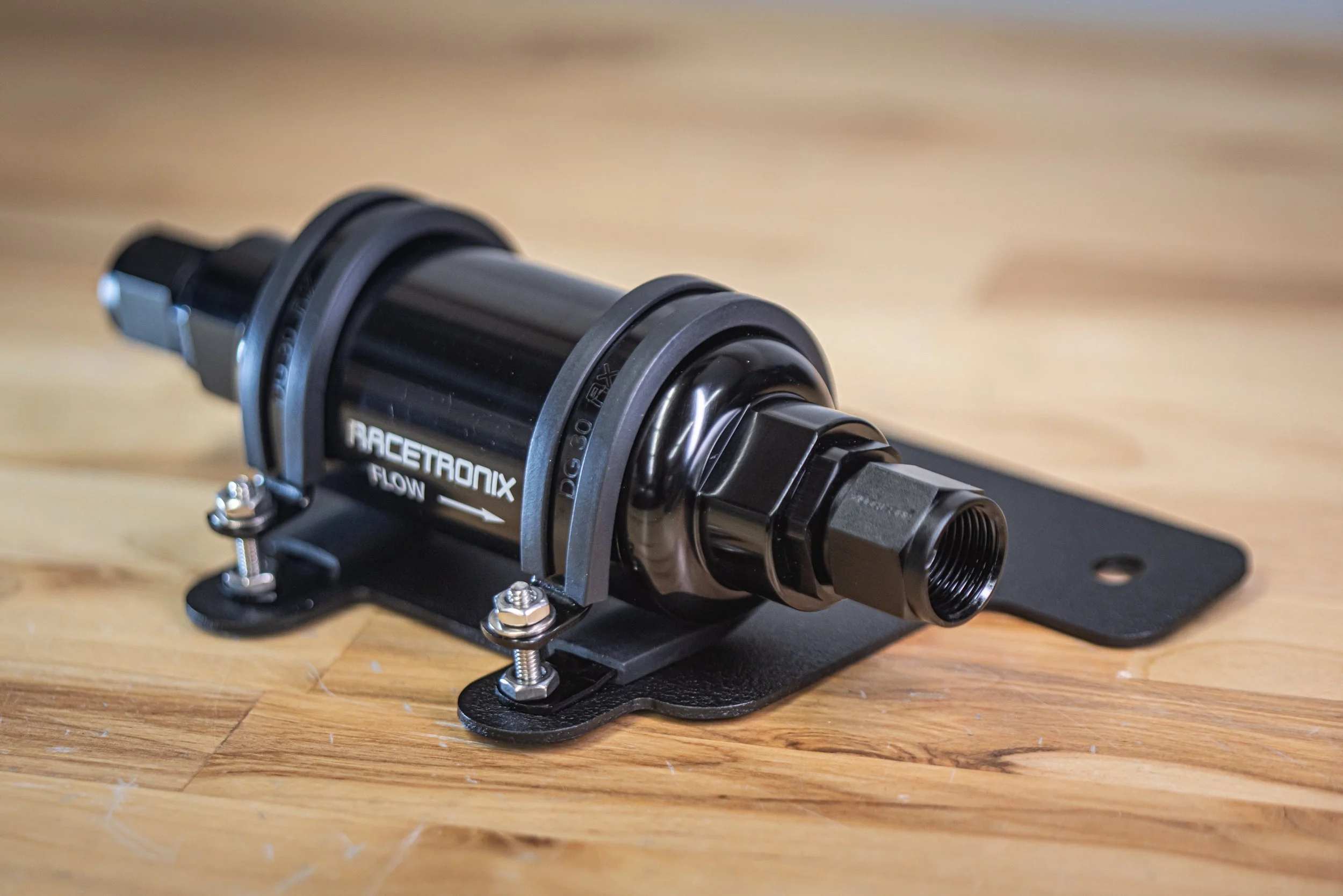

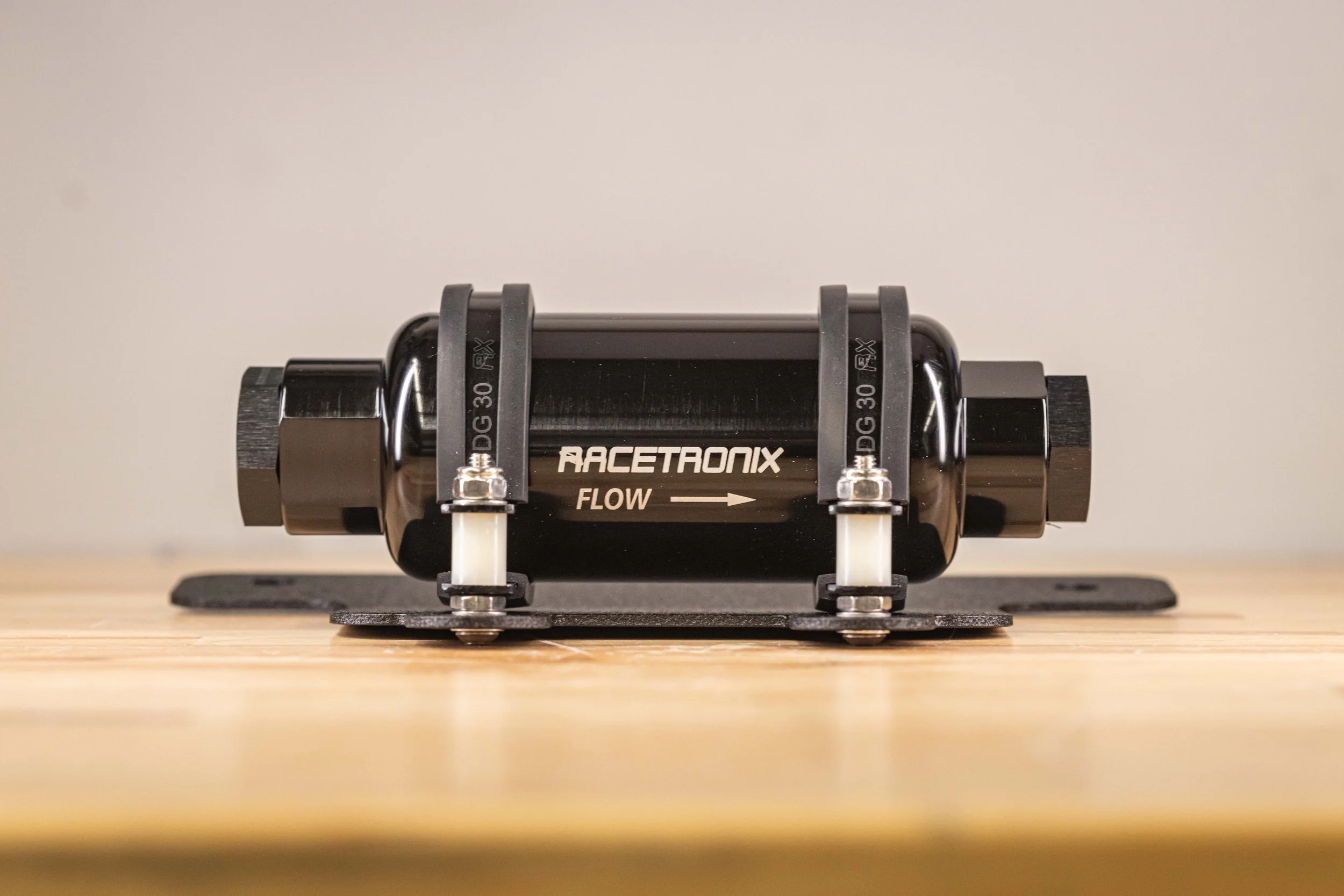

For the bracket, it was important that we utilize the largest cavity under the car for easy access even when working off jack stands like me. We designed this bracket to perfectly contour the dimensions of this filter body, and utilizes OEM attachment points. The .063” aluminum bracket is lightweight, and treated to a durable satin wrinkle black powder coat and paired with SS clamp hardware.

Features and Benefits

• 10 Micron 304SS Mesh Filter

• E85 and Race Fuel Compatible

• Mesh Filter Comes with Magnetic Pick Up

• Billet Aluminum Case with Precision fitment

• Sleek and durable gloss black anodized finish

• Custom Powder Coated Aluminum Mounting Bracket

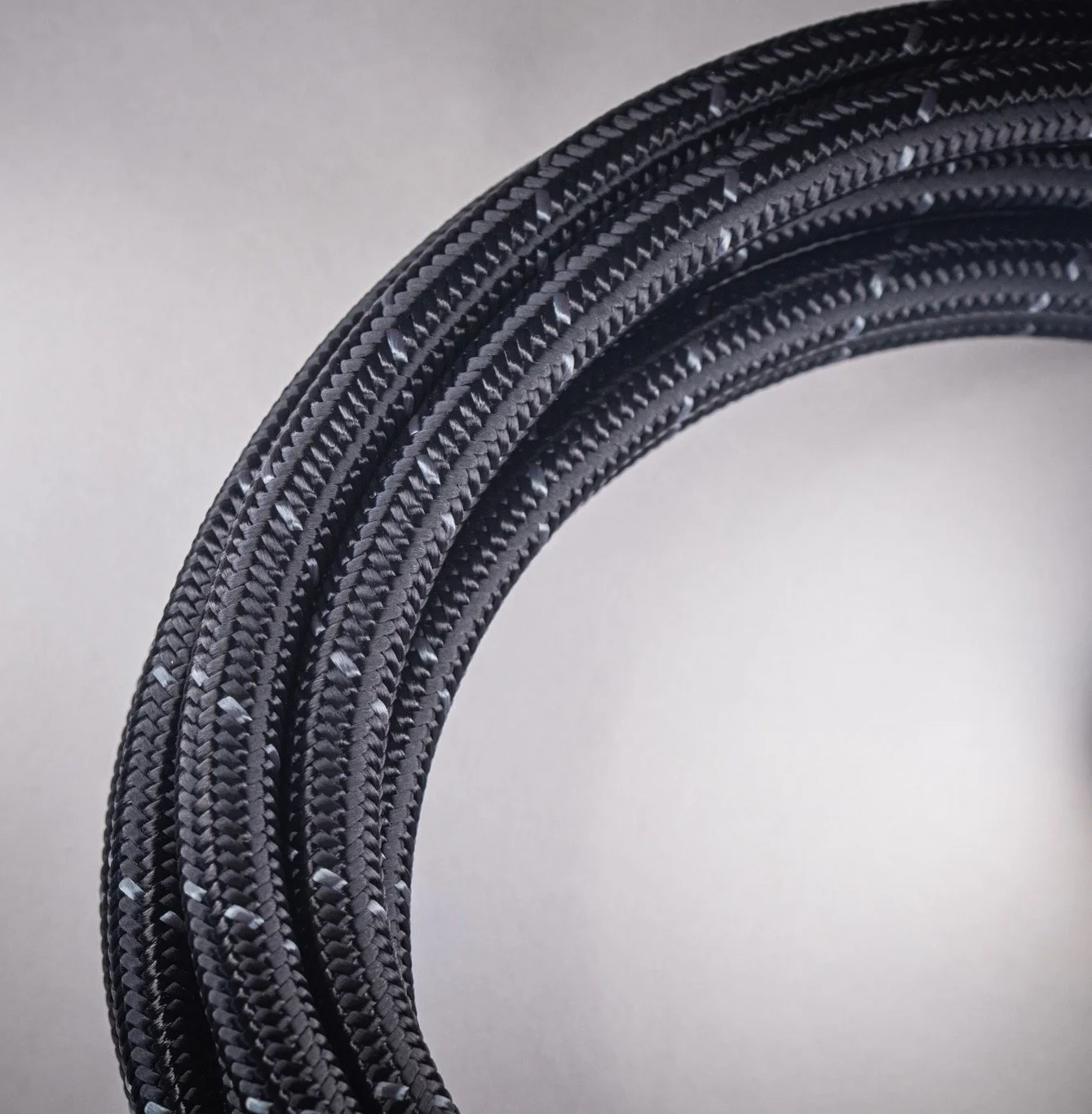

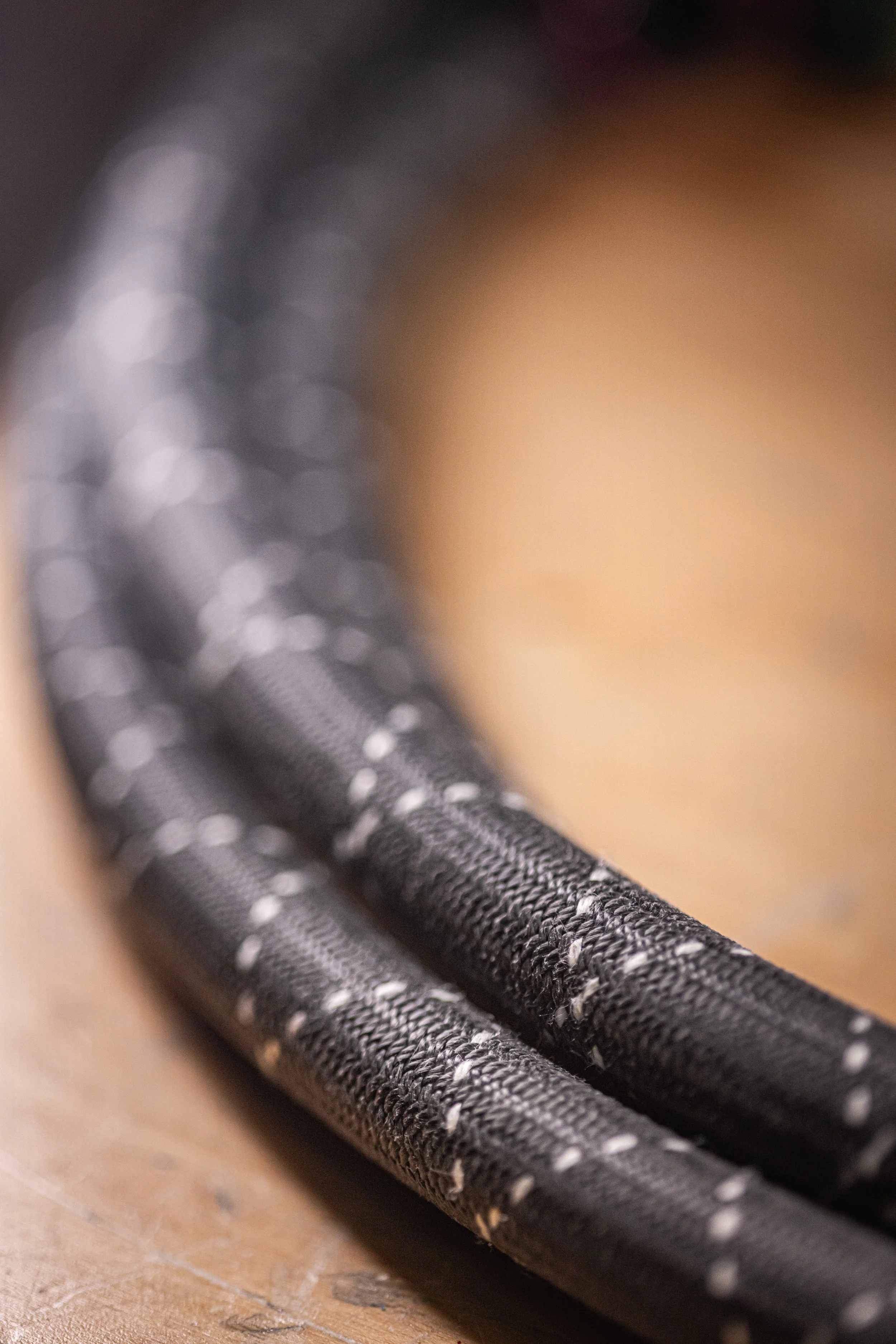

A little about Raceflux Braided Hose.

RaceFlux's RH1 lightweight racing hose is 33% lighter than stainless braided hose and much easier to assemble and work with. This 4-layer hose is SAE J30 R9 rated and features a Viton Fluoroelastomer (FKM) inner layer for compatibility with nearly all automotive fluids including fuel, engine oil, gear oil, transmission fluid, coolants, water, air and vacuum.

Features and Benefits

• NHRA Approved.

• 33% lighter than traditional stainless steel braided hose

• Smooth bore Viton FKM fluroeslastomer rubber inner layer composed of vinylidene fluoride (VDF), hexafluoropropylene (HFP) and tetrafluoroethylene (TFE) with a high fluorine content for excellent chemical resistance

• Reinforced with a lightweight embedded stainless steel inner braid for use in vacuum applications

• -40°F (-40°C) to 302°F (150°C) operating temperature

• 300 PSI max operating pressure & 1,000 PSI burst pressure

• For use with traditional reusable AN fittings (not for use with push-on style barbed fittings)

By popular demand, our fuel line & fitting connection kit is universal, and comes ready for you to cut to fit and assemble using all of the supplied necessary fittings. We do also plan to add a more expensive “premade” line kit but that won’t be for a few months. If you need one sooner, email me at info@griffin-motorsports.com

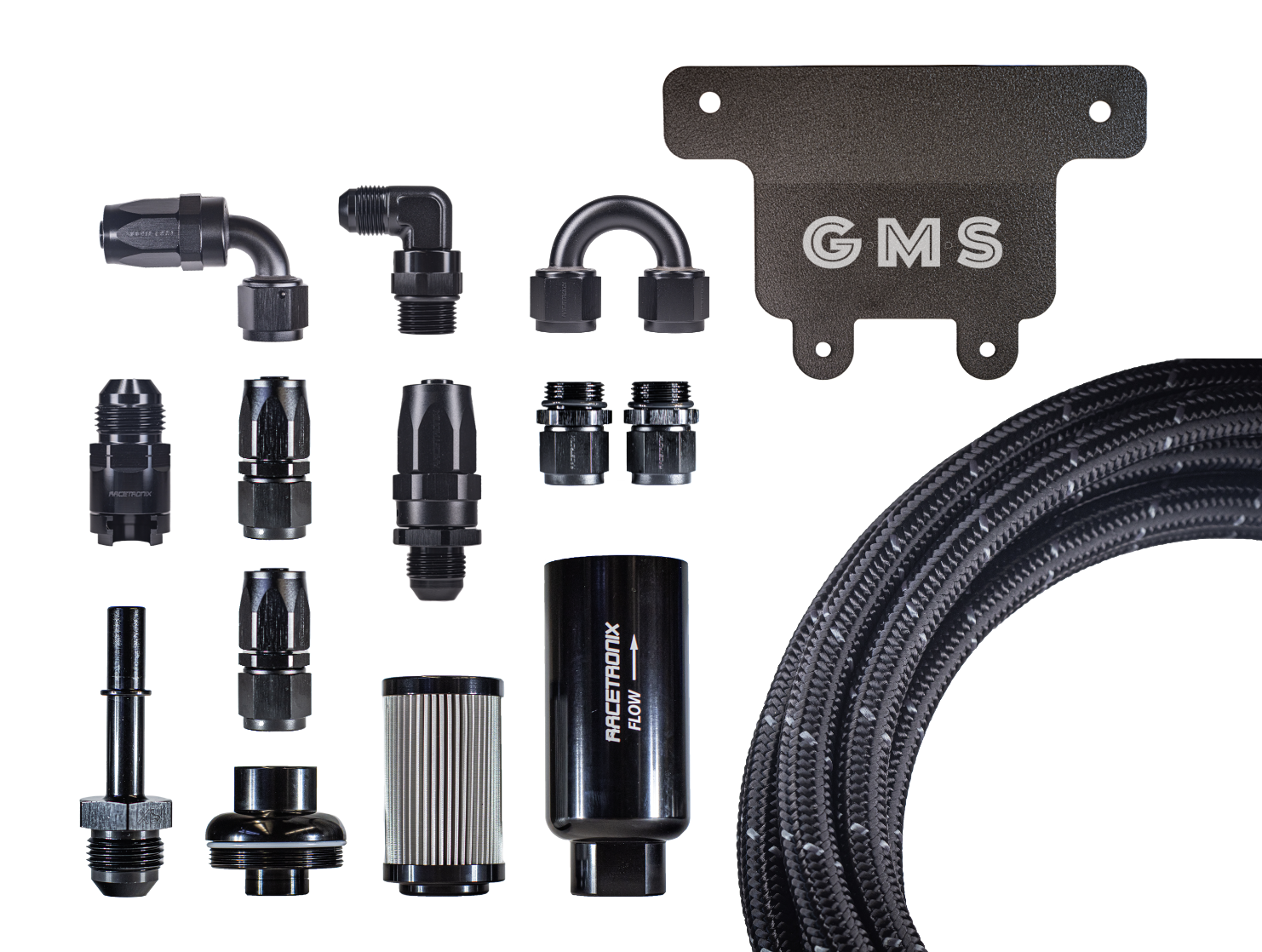

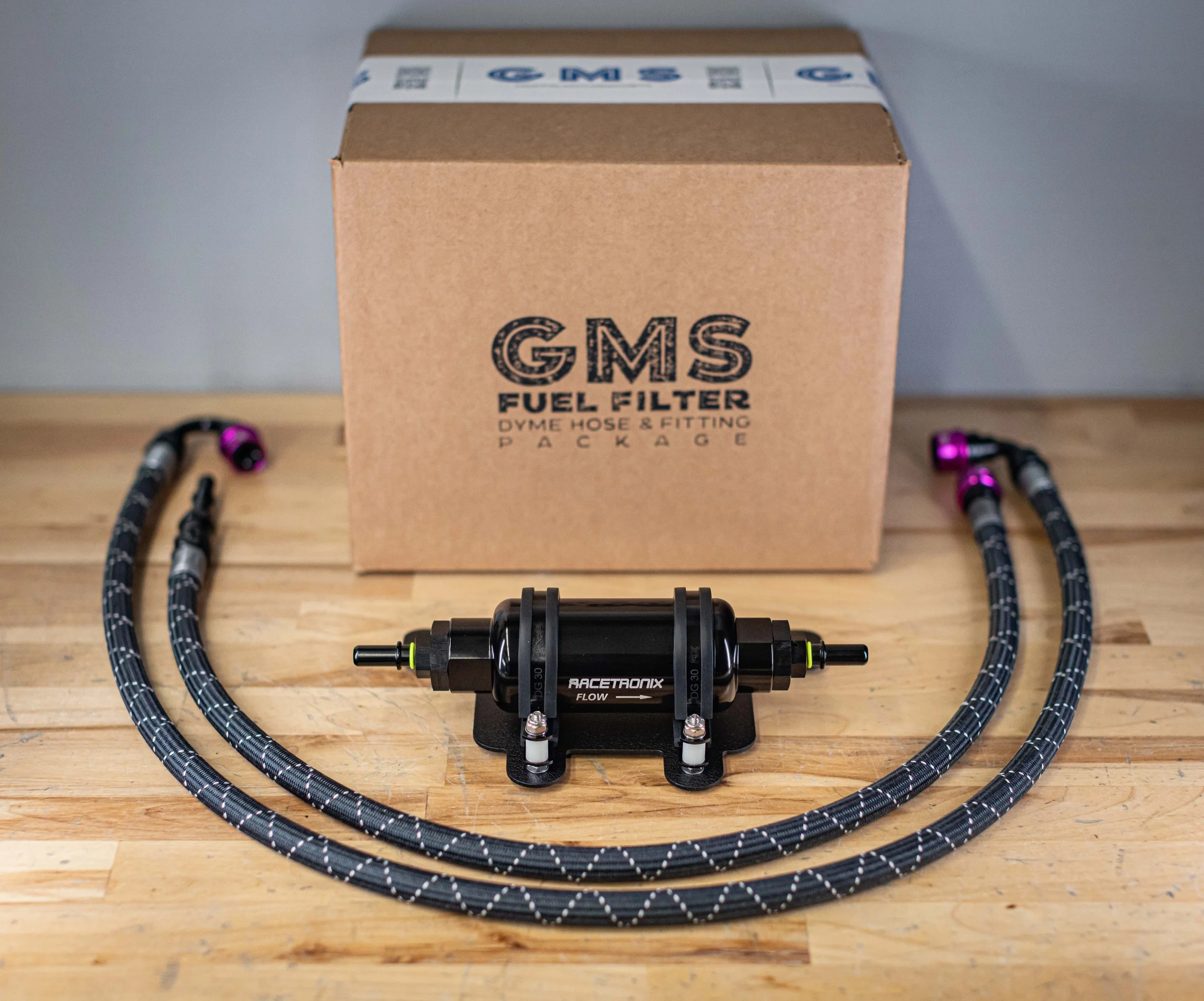

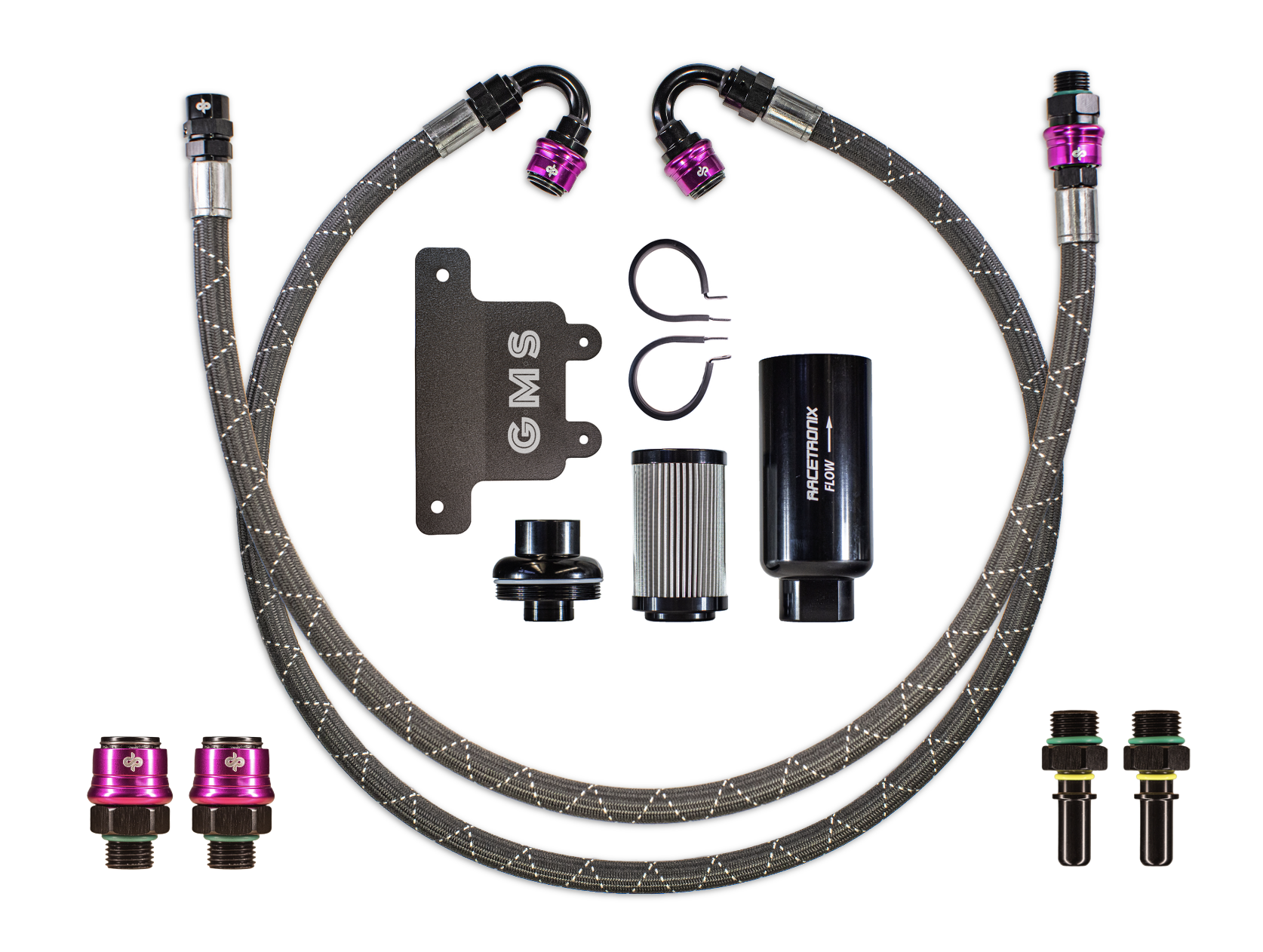

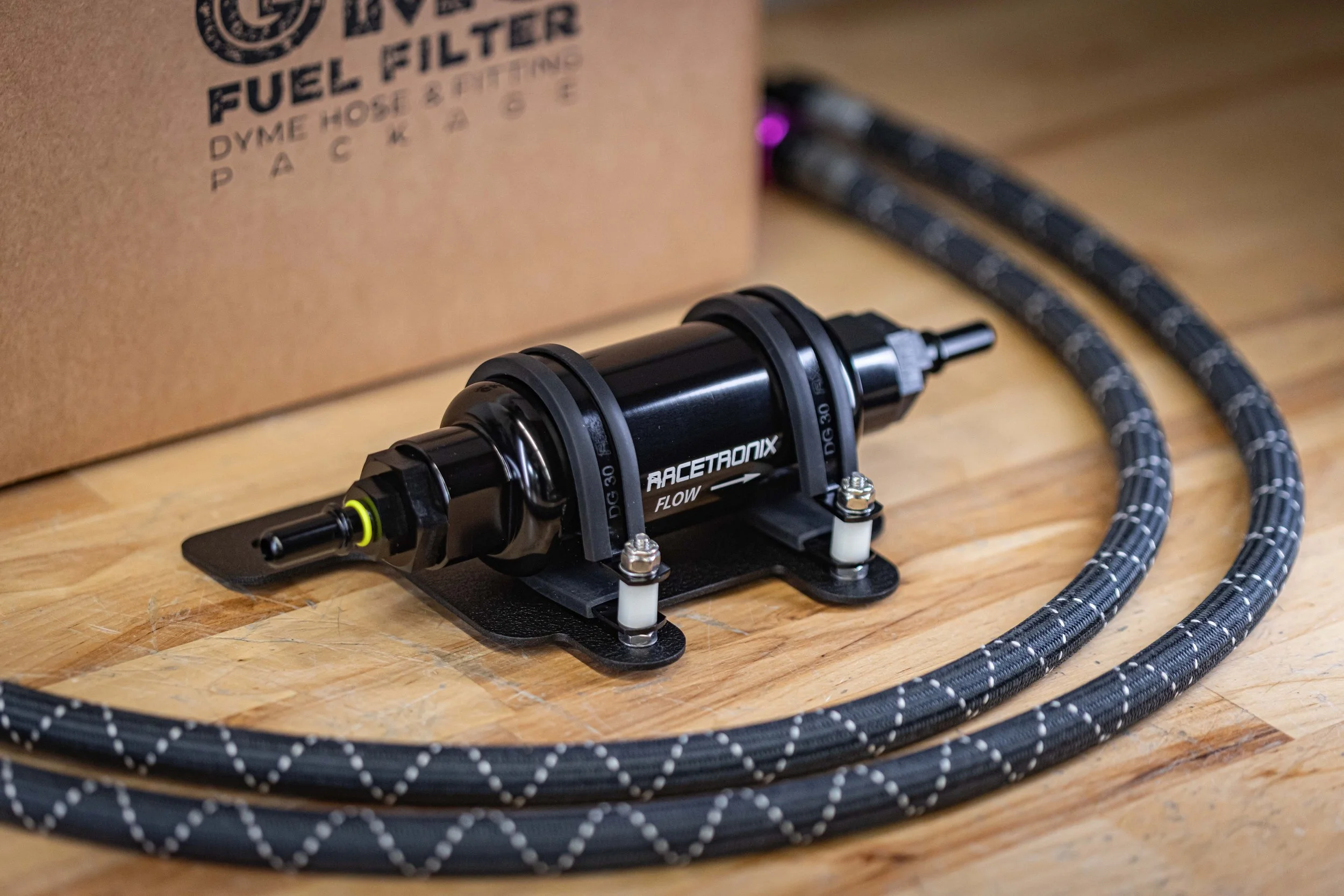

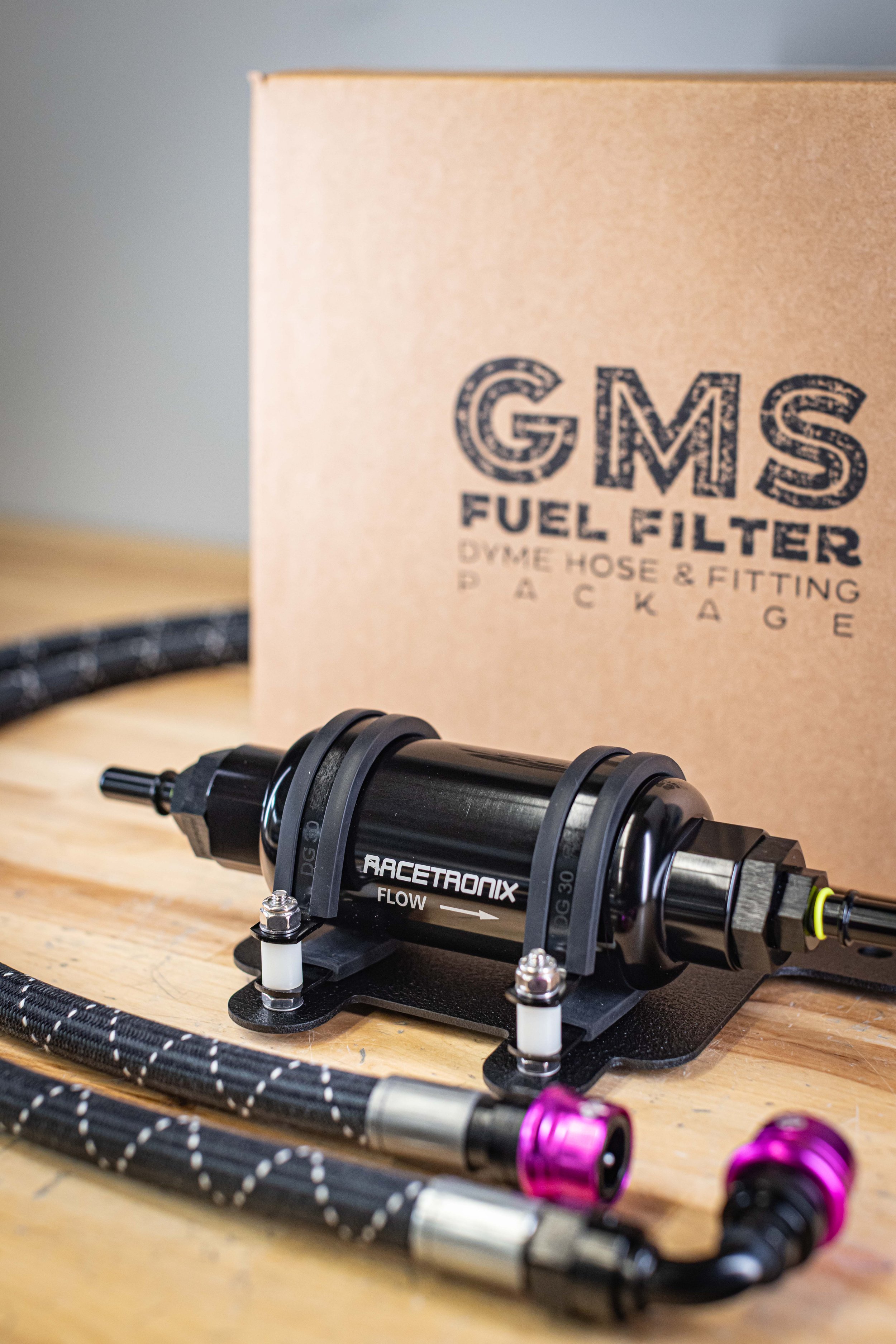

Whats in the box;

• (1) 10 Micron 304SS Mesh Filter

• (1) Custom Aluminum Filter Bracket

• (1) 2-piece Billet Aluminum Filter Housing

• (2) Cushioned SS Band Clamps with hardware

• (6) Feet of -8AN RaceFlux's RH1 lightweight racing hose

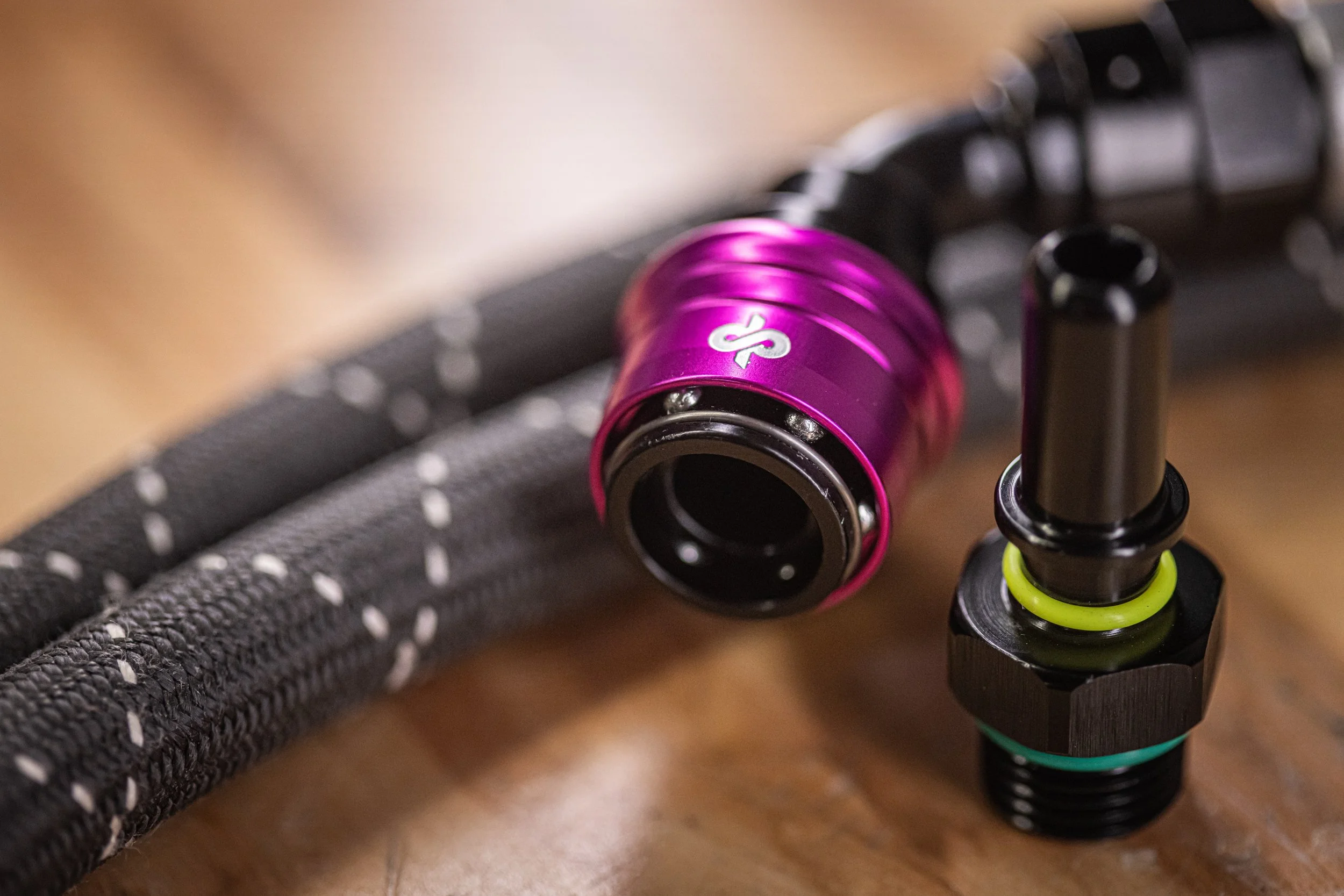

• (9) Various Black Anodized Racetronics -8AN Fittings / Adapters

What YOU will need to provide:

• Patience and attention to detail for installation... or, someone like that, who you trust with your beloved, adorned, magnificent, earth shaking, alarm sounding Camaro ZL1 or SS.

• Cut-off wheel or large cable cutters in order to cut your braided lines to fit.

Fitment: 2016 - 2024 6th Gen. Camaro (all models)
