DRIVEN BR30 5W-30 Break-In Oil #01806
The Most Important Oil Your Engine Will Ever Run
The first start of a freshly built engine is one of the most critical moments in the life of the engine. Bearings experience load for the first time, piston rings begin to seat against freshly honed cylinder walls, and camshafts and lifters establish their wear patterns. During this short but crucial period, the oil you choose will determine whether your engine achieves maximum power, proper ring seal, and long-term durability — or suffers premature wear and lost performance.
Driven BR30 5W-30 Break-In Oil was specifically engineered to protect engines during this critical phase. Unlike conventional engine oils designed for long service intervals and emissions compliance, BR30 uses a specialized additive package that allows controlled component wear where necessary while providing maximum protection for high-load parts.
For engine builders, racers, and enthusiasts who want their engine to perform exactly as designed, using a dedicated break-in oil like BR30 is not optional — it’s essential.
Engineered for Proper Ring Seal and Maximum Power
One of the most important goals during engine break-in is achieving proper piston ring seating. If the rings fail to seat correctly during the first hours of engine operation, the engine may experience:
reduced compression
excessive blow-by
oil consumption
reduced horsepower
Many modern engine oils contain high levels of detergents and friction modifiers designed to reduce wear over long service intervals. While this is beneficial for daily driving, it can actually prevent piston rings from properly seatingduring break-in.
Driven BR30 is formulated with a reduced detergent additive package, allowing the microscopic cross-hatch pattern in freshly honed cylinder walls to properly mate with the piston rings. This controlled wear process allows the rings to seal quickly and effectively, creating a tight combustion seal that maximizes compression and power output.
The result is an engine that delivers strong compression, optimal efficiency, and long-term reliability.
High ZDDP Protection for Critical Valvetrain Components
During the first startup of a fresh engine, many internal components operate in boundary lubrication conditions, where the oil film is not yet fully established. Camshaft lobes, lifters, rocker arms, and pushrods experience especially high contact pressures during this time.
Driven BR30 contains elevated levels of ZDDP (zinc and phosphorus anti-wear additives) to protect these high-load components during the break-in period.
ZDDP works by forming a sacrificial anti-wear layer on metal surfaces. When contact pressure increases, this layer absorbs the load and prevents metal-to-metal contact that could otherwise cause scuffing or permanent damage.
This protection is especially critical for:
aggressive camshaft profiles
high valve spring pressures
performance engine builds
flat tappet camshaft applications
Without adequate anti-wear protection during break-in, permanent damage can occur within minutes of initial startup.
Controlled Friction for Proper Component Mating
Modern street oils often contain friction modifiers designed to reduce internal drag and improve fuel economy. While beneficial for daily driving, these additives can slow or prevent the controlled wear necessary for proper engine break-in.
Driven BR30 intentionally avoids these aggressive friction modifiers, allowing internal engine components to mate together correctly during the break-in process.
This controlled friction ensures that:
piston rings seat quickly
cylinder walls develop optimal sealing surfaces
internal components establish proper wear patterns
By allowing these components to break in properly, BR30 helps create a stronger engine that produces maximum horsepower and long-term reliability.
Ideal for Dyno Break-In and Initial Engine Operation
Driven BR30 Break-In Oil is designed specifically for the initial startup and early operating period of a freshly built engine.
Typical break-in usage includes:
Fill the engine with BR30 prior to first startup.
Prime the oil system to ensure proper oil pressure.
Run the engine through moderate load cycles to promote proper ring seating.
Change the oil and filter after the break-in period (typically 30–100 miles or after dyno break-in) Always consult your engine builder. Some engine builders suggest 2 cycles of break in oil. One after the first few heat cycles, and one after the first 300 miles.
Once the break-in process is complete, the engine should be switched to a high-performance engine oil appropriate for its intended application.
Why Using Standard Oil During Break-In Is Risky
Using standard engine oil during break-in can compromise engine performance before the engine has even left the garage.
Modern passenger-car oils are designed primarily for:
As a result, they often contain detergent and friction modifier packages that prevent the controlled wear required for proper ring seating.
What Happens If Piston Rings Don’t Seat Properly?
When a freshly built engine is started for the first time, the piston rings must quickly establish a seal against the cylinder walls. This process occurs as the microscopic peaks of the cylinder wall hone pattern wear into the ring face, creating a tight combustion seal.
If this process does not occur correctly during the initial break-in period, the engine may suffer from permanent performance issues that cannot easily be corrected without tearing the engine back down.
Improper ring seating can lead to several problems, including:
Loss of Compression
If the rings fail to seal tightly against the cylinder walls, combustion pressure escapes into the crankcase instead of pushing down on the piston. This results in lower cylinder pressure and reduced engine power.
Blow-By and Crankcase Pressure
Poor ring seal allows combustion gases to leak past the piston rings and enter the crankcase. Excessive blow-by can increase crankcase pressure, contaminate engine oil, and reduce engine efficiency.
Oil Consumption
Improperly seated rings can allow oil to enter the combustion chamber, resulting in excessive oil consumption and blue smoke from the exhaust.
Reduced Horsepower and Efficiency
Even small losses in ring seal can significantly impact engine performance. A properly sealed engine produces stronger cylinder pressure, better combustion efficiency, and more usable power.
Why Builders Trust Driven Break-In Oil
Driven Racing Oil products were originally developed by engineers working with professional motorsports teams who needed lubrication solutions capable of protecting engines under extreme conditions.
These same engineering principles are applied to Driven’s break-in oils. The formulations are designed not only to protect critical components during initial startup but also to ensure the engine achieves optimal performance and durability over its lifetime.
Professional engine builders understand that the first oil an engine runs can determine its entire future performance.

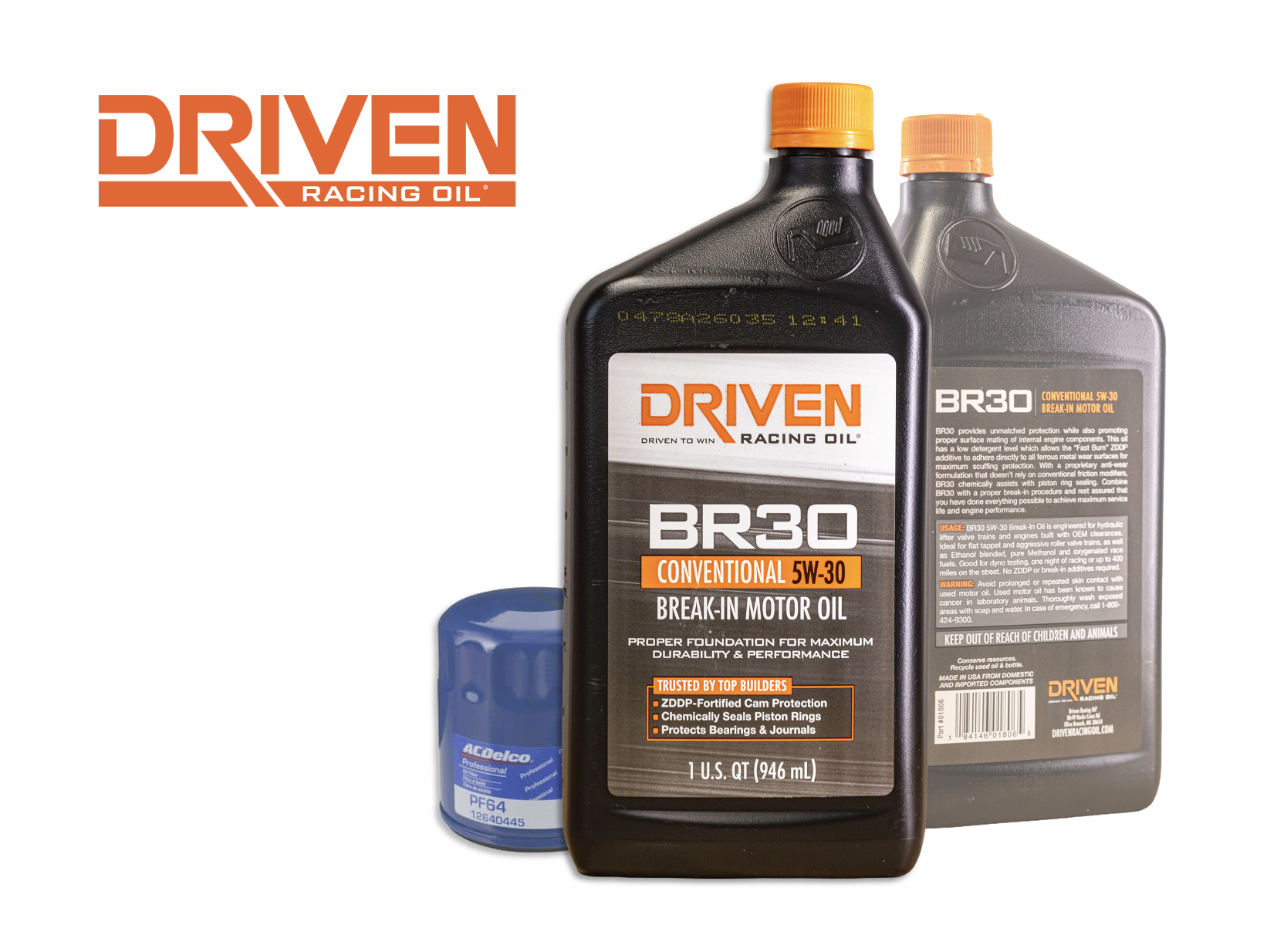

SOLD in cases of (10) with optional ACDelco PF64 Filters. Email us at info@griffin-motorsports for larger or smaller orders.
